SKU: NJ412-EU

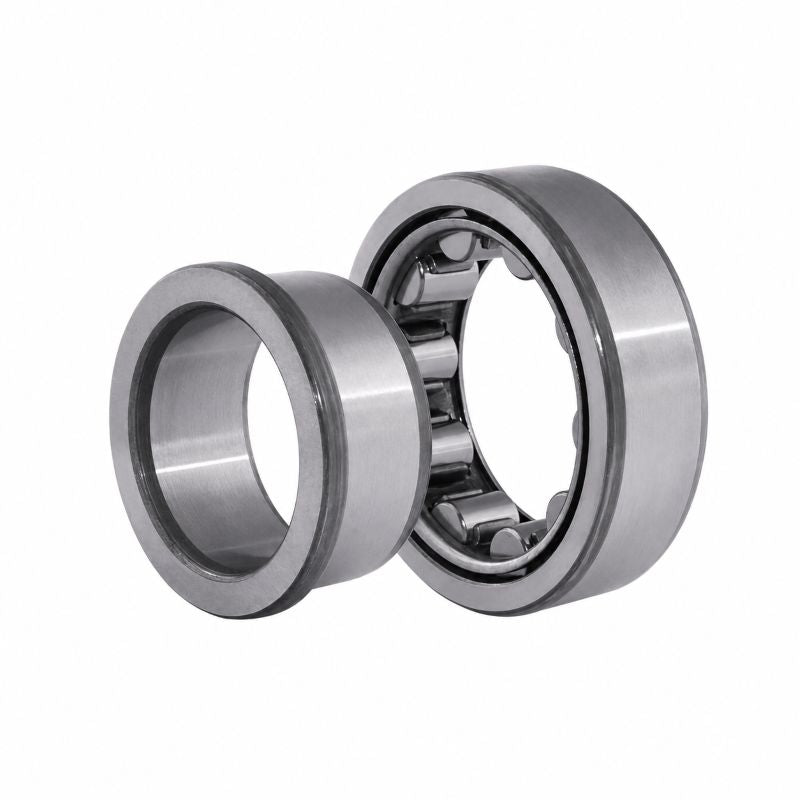

NJ412 Budget Single Row Cylindrical Roller Bearing 60x150x35mm
NJ412 Budget Single Row Cylindrical Roller Bearing 60x150x35mm
Regular price
CHF 191.73
ex VAT
Regular price
Sale price
CHF 191.73
ex VAT
In stock
Price Break
10+
CHF 170.64
19+
CHF 161.05
29+
CHF 159.14
39+
CHF 157.22
49+
CHF 155.30
74+
CHF 153.38
99+
CHF 143.80
199+
CHF 141.88
249+
CHF 139.96
499+
CHF 138.05
999+
CHF 134.21
Couldn't load pickup availability
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 168 kN |
| Static load Co | 173 kN |
| Fatigue load limit Pu | 22 kN |
| Reference speed | 5000 rpm |
| Limiting speed | 6000 rpm |
| Weight | 3.1 kg |
| d1 | 91.8mm |
| D1 | 117mm |
| F, E | 83mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 2.5mm |
| da min | 74mm |
| da max | 80mm |
| db min | 94mm |
| Da max | 136mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
