SKU: NK10/16-NTN

NTN NK10/16 Machined Needle Roller Bearing no Shaft Sleeve 10x17x16mm

NTN NK10/16 Machined Needle Roller Bearing no Shaft Sleeve 10x17x16mm
Regular price CHF 10.00 ex VAT
Regular price Sale price CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 7.84
4+ CHF 7.40
9+ CHF 7.31
19+ CHF 7.22
49+ CHF 7.14
99+ CHF 7.05
499+ CHF 6.61
999+ CHF 6.52
1999+ CHF 6.43
2999+ CHF 6.34
4999+ CHF 6.17
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

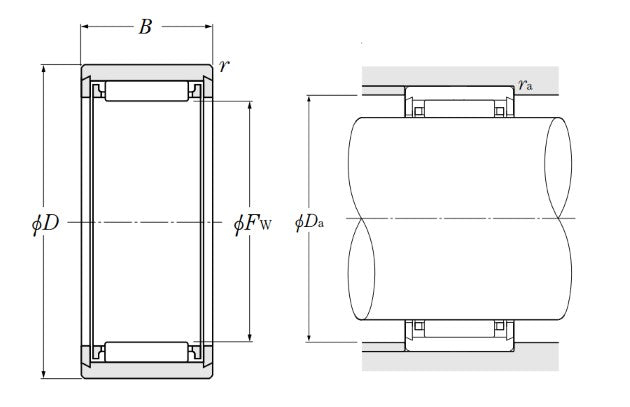

Fw - Under rollers diameter 10mm
D - Outside diameter 17mm
C - Width of bearing, drawn cup or outer ring 16mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 5.45 kN
C0r - Static load rating 6.45 kN
N - Grease lubrication limit speed 19000 tr/min
N - Oil lubrication limit speed 28000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 11.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
