SKU: NK14/20R+1R10X14X20-NTN

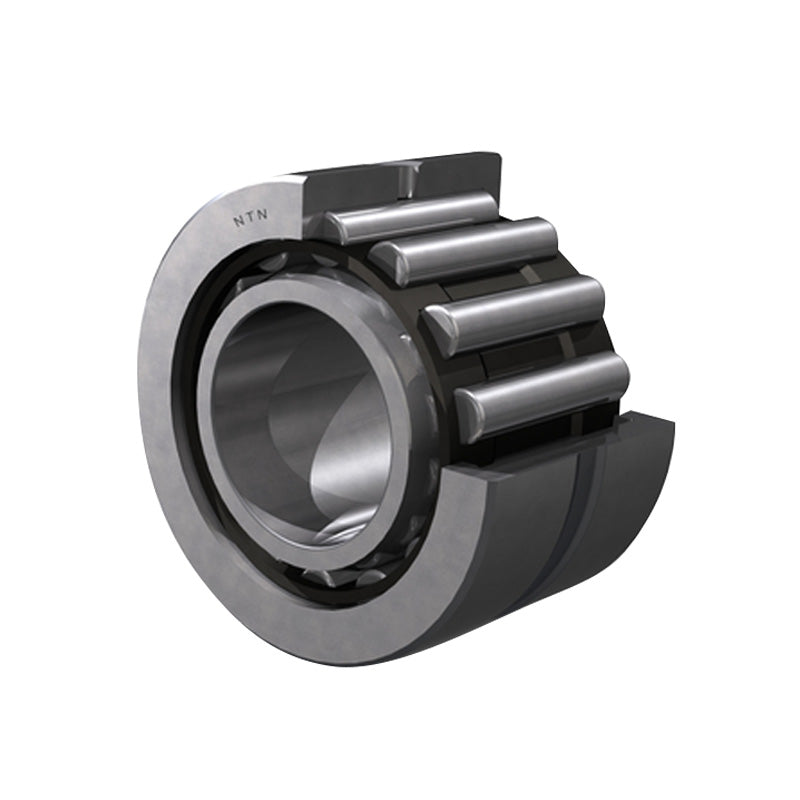

NTN NK14/20R-1R10X14X20 Machined Needle Roller Bearing with Shaft Sleeve 10x22x20mm - Allow 2-3 Days

NTN NK14/20R-1R10X14X20 Machined Needle Roller Bearing with Shaft Sleeve 10x22x20mm - Allow 2-3 Days
Regular price CHF 13.00 ex VAT
Regular price Sale price CHF 13.00 ex VAT
Sale Sold out

Low stock

Price Break
3+ CHF 10.95
4+ CHF 10.51
9+ CHF 10.29
19+ CHF 9.95
49+ CHF 9.73
99+ CHF 9.18
499+ CHF 7.74
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
d - Inside diameter 10mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 20mm
F - Under roller diameter 14mm
rs - Minimum fillet radius 0.3mm
s - Max axial offset 0.5mm
Lubrication hole on outer ring? No
Inner ring reference 1R10X14X20
Lubrication hole on innr ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 13 kN
C0r - Static load rating 15.6 kN
N - Grease lubrication limit speed 16000 tr/min
N - Oil lubrication limit speed 24000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
da min - Inner ring minimum shoulder diameter 12mm
Da max - Outer ring maximum shoulder diameter 20mm
ras max - Maximum shaft & housing fillet radius 0.3mm
