SKU: NK15/12-MB

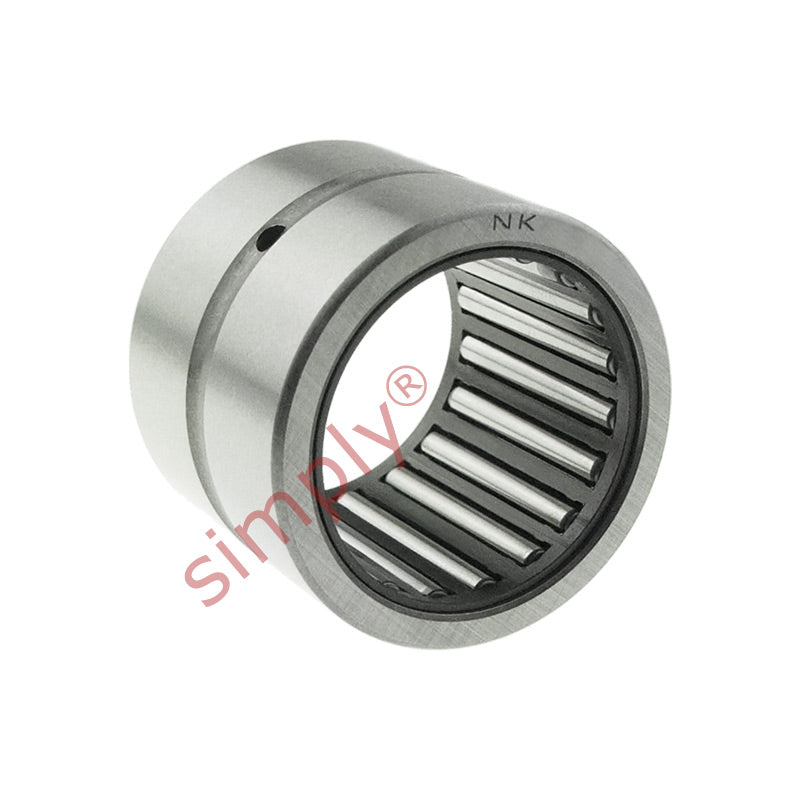

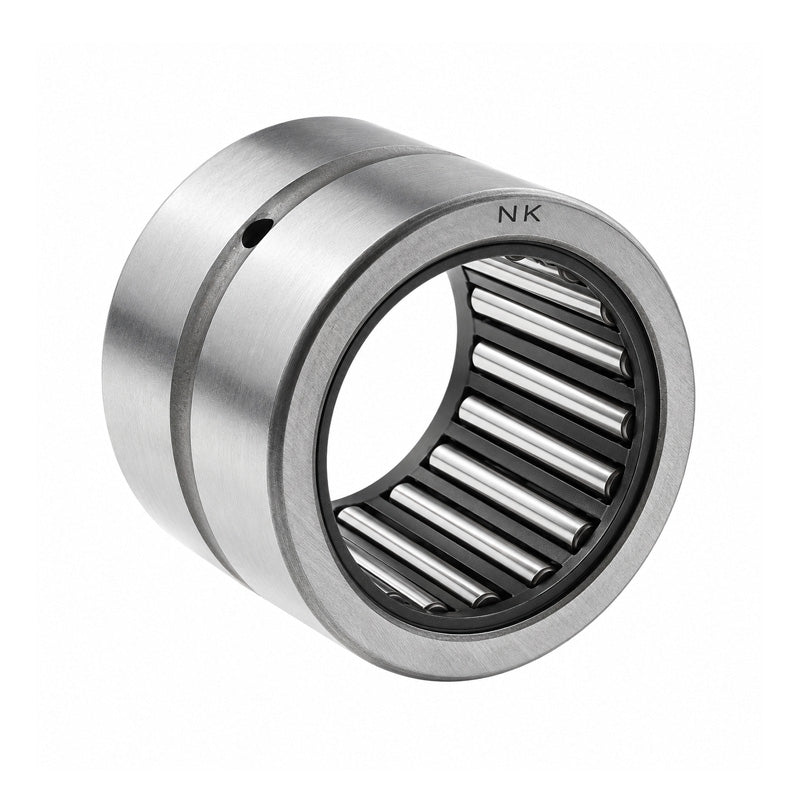

Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
Regular price
CHF 11.80
ex VAT
Regular price
Sale price
CHF 11.80
ex VAT
In stock
Price Break
10+
CHF 10.50
19+
CHF 9.91
29+
CHF 9.79
39+
CHF 9.68
49+
CHF 9.56
74+
CHF 9.44
99+
CHF 8.85
199+
CHF 8.73
249+
CHF 8.61
499+
CHF 8.50
999+
CHF 8.26
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 23mm
- Width:
- 12mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 23mm |
| C | 12mm |
| Dynamic load | 8600 N |
| Static load | 10070 N |
| Speed in oil | 21004 rpm |
| Weight | 18.5g |
