SKU: NK21/16-MB

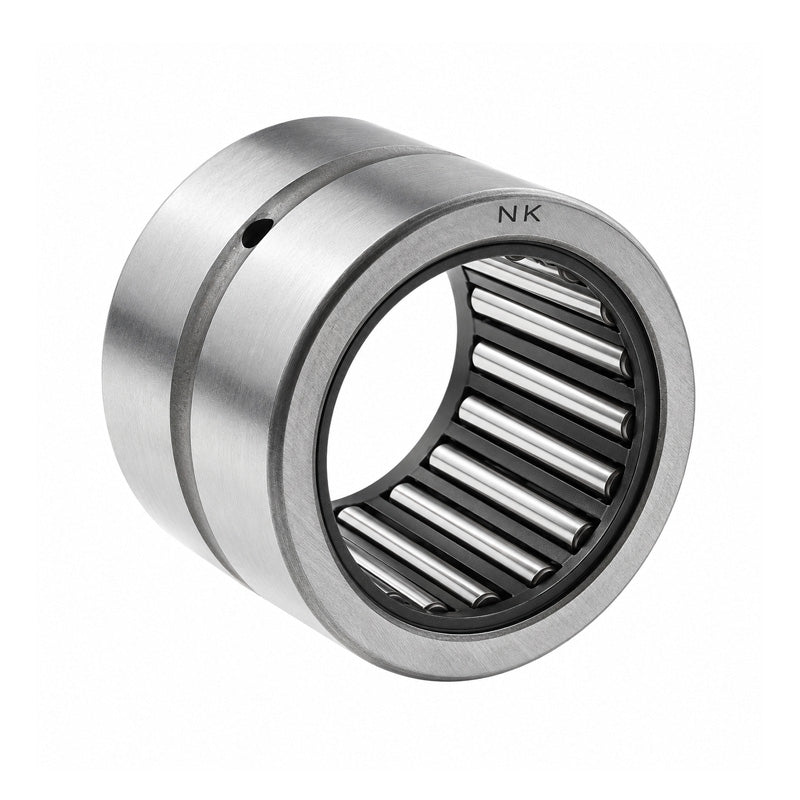

Major Brand NK21/16 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x16mm
Major Brand NK21/16 Needle Roller Bearing With Flanges without Shaft Sleeve 21x29x16mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
10+
CHF 15.73
19+
CHF 14.85
29+
CHF 14.67
39+
CHF 14.50
49+
CHF 14.32
74+
CHF 14.14
99+
CHF 13.26
199+
CHF 13.08
249+
CHF 12.90
499+
CHF 12.73
999+
CHF 12.37
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 21mm
- Outside Diameter:
- 29mm
- Width:
- 16mm
Technical
Technical
| Fw | 21mm |
|---|---|
| D | 29mm |
| C | 16mm |
| Dynamic load | 13800 N |
| Static load | 20400 N |
| Fatigue load limit Pu | 2500 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| r1r2 | 0.3mm |
| Da max | 27mm |
| ra max | 0.3mm |
| Seal | G21x29x4 |
| Weight | 28 g |
