SKU: NK24/20-MB

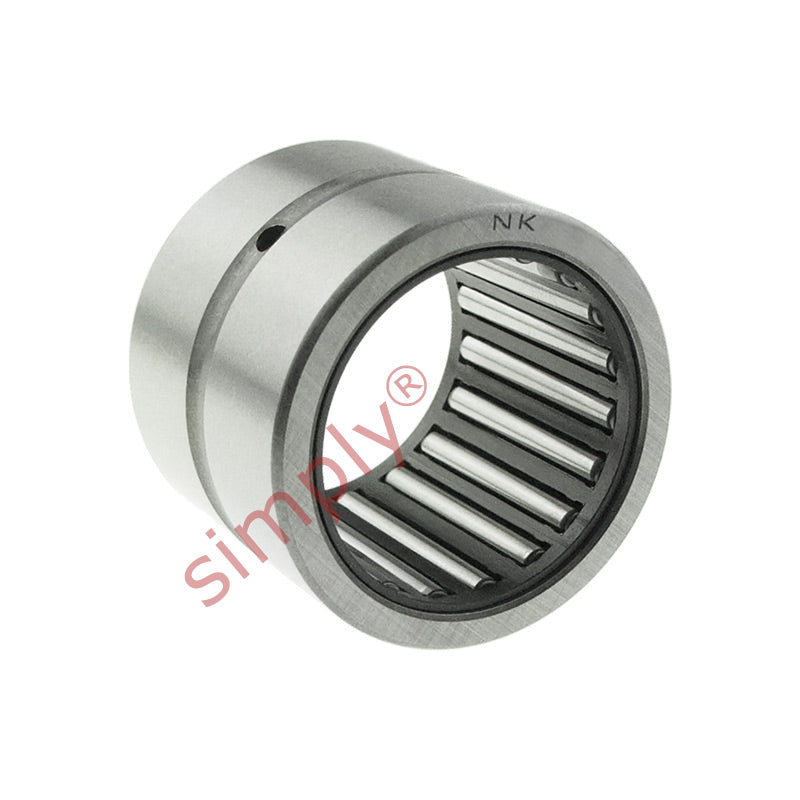

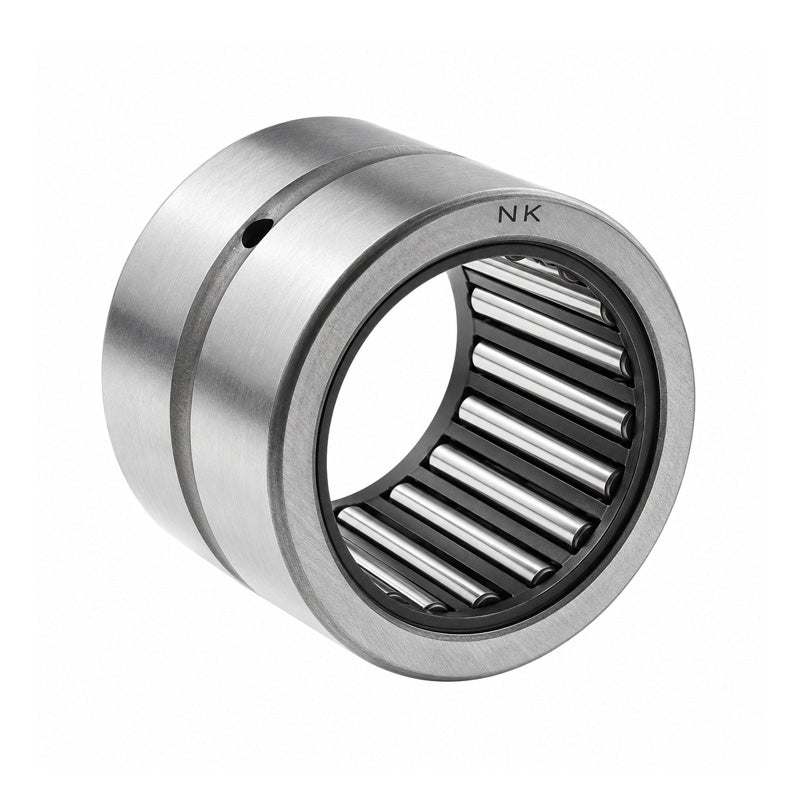

Major Brand NK24/20 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x20mm
Major Brand NK24/20 Needle Roller Bearing With Flanges without Shaft Sleeve 24x32x20mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
10+
CHF 8.10
19+
CHF 7.64
29+
CHF 7.55
39+
CHF 7.46
49+
CHF 7.37
74+
CHF 7.28
99+
CHF 6.83
199+
CHF 6.73
249+
CHF 6.64
499+
CHF 6.55
999+
CHF 6.37
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 32mm
- Width:
- 20mm
Technical
Technical
| Fw | 24mm |
|---|---|
| D | 32mm |
| C | 20mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Fatigue load limit Pu | 4050 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 | 0.3mm |
| Da max | 30mm |
| ra max | 0.3mm |
| Seal | G/SD24x32x4 |
| Weight | 40 g |
