SKU: NK42/20-MB

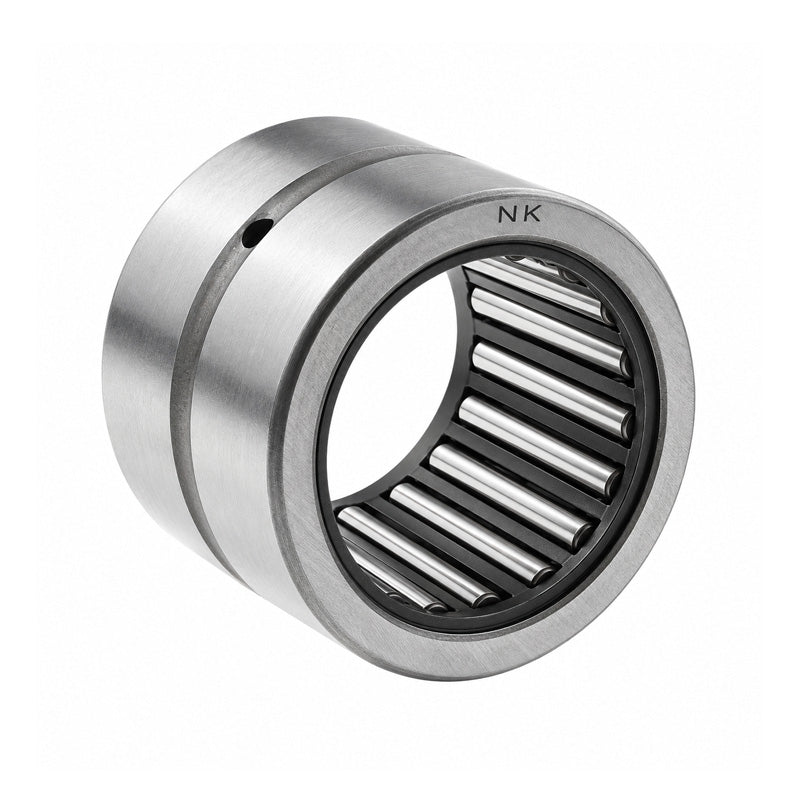

Major Brand NK42/20 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x20mm
Major Brand NK42/20 Needle Roller Bearing With Flanges without Shaft Sleeve 42x52x20mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.31
19+
CHF 6.90
29+
CHF 6.81
39+
CHF 6.73
49+
CHF 6.65
74+
CHF 6.57
99+
CHF 6.16
199+
CHF 6.08
249+
CHF 5.99
499+
CHF 5.91
999+
CHF 5.75
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| Fw | 42mm |
|---|---|
| D | 52mm |
| C | 20mm |
| Dynamic load | 27000 N |
| Static load | 53000 N |
| Fatigue load limit Pu | 6700 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| r1r2 | 0.3mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Seal | G/SD42x52x4 |
| Weight | 86 g |
