SKU: NK5/10T2-NTN

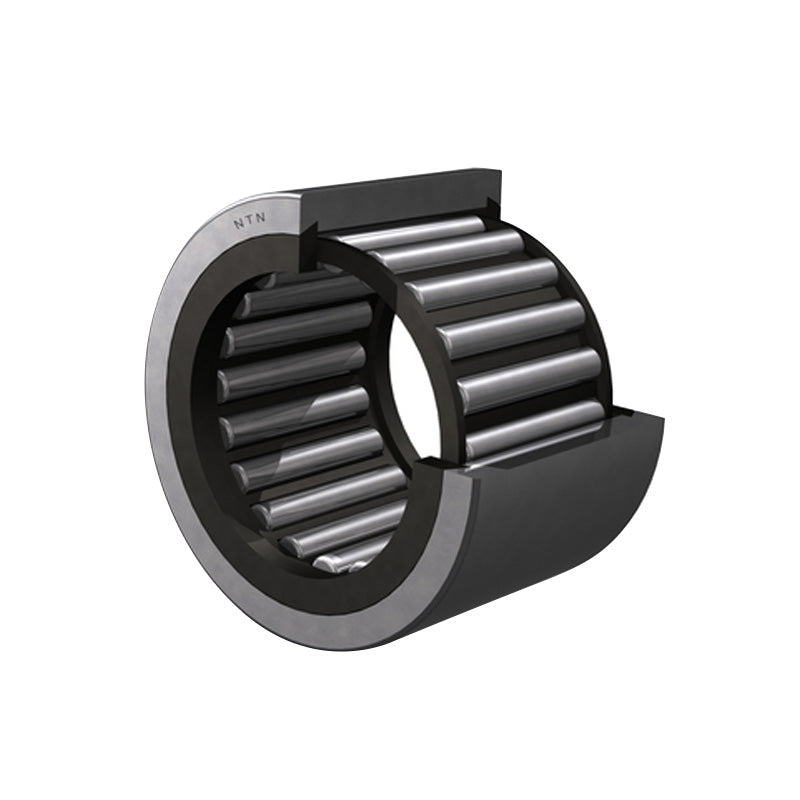

NTN NK5/10T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x10mm

NTN NK5/10T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x10mm
Regular price CHF 9.00 ex VAT
Regular price Sale price CHF 9.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 6.65
4+ CHF 6.27
9+ CHF 6.20
19+ CHF 6.13
49+ CHF 6.05
99+ CHF 5.98
499+ CHF 5.60
999+ CHF 5.53
1999+ CHF 5.45
2999+ CHF 5.38
4999+ CHF 5.23
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 5mm
D - Outside diameter 10mm
C - Width of bearing, drawn cup or outer ring 10mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 2.64 kN
C0r - Static load rating 2.19 kN
N - Grease lubrication limit speed 27000 tr/min
N - Oil lubrication limit speed 40000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 6.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
