SKU: NK5/10TN-MB

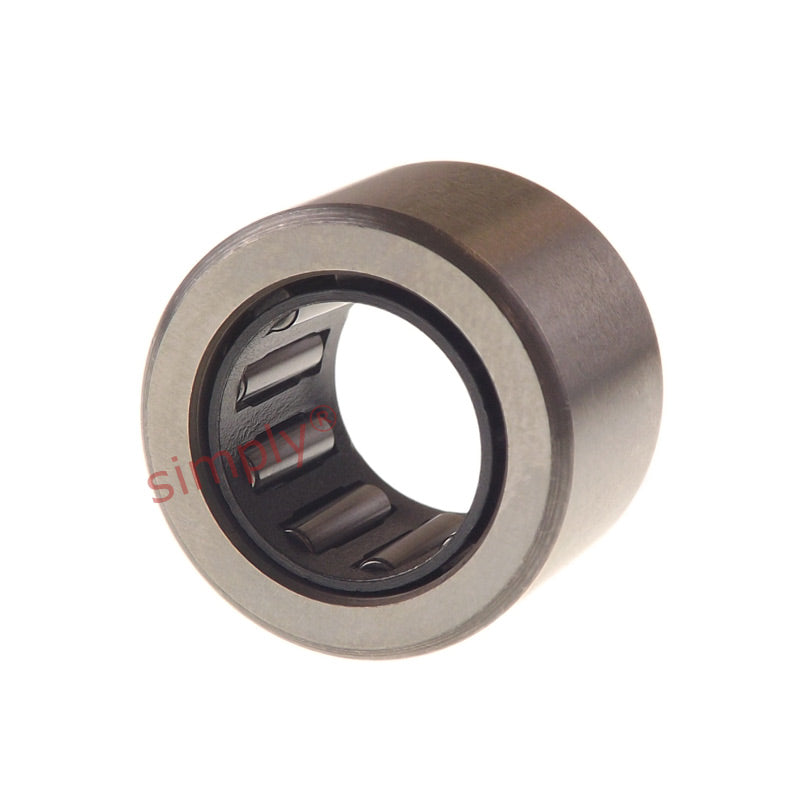

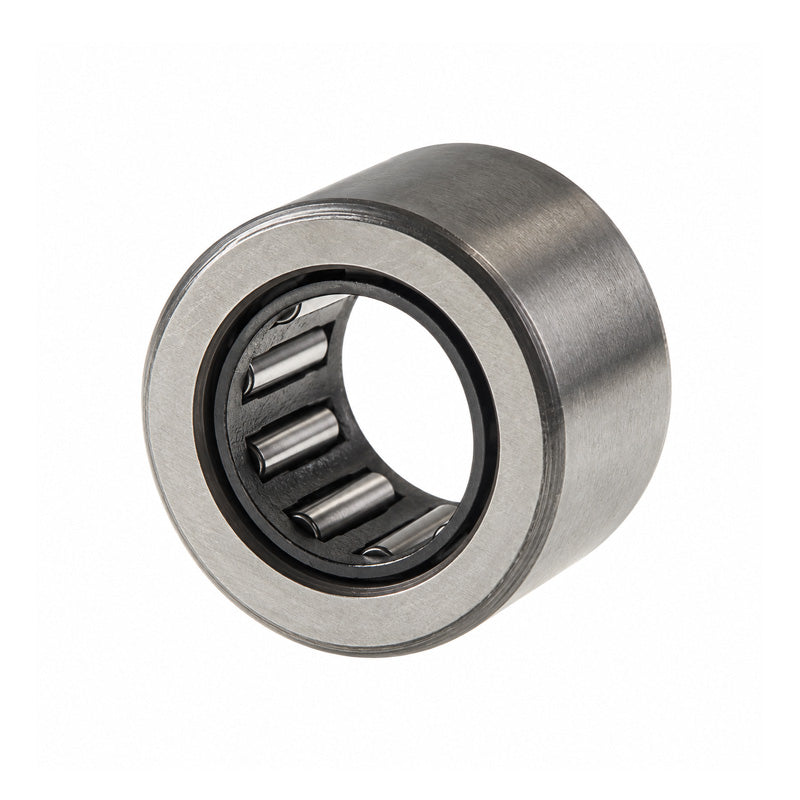

Major Brand NK5/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x10mm
Major Brand NK5/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 5x10x10mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: TAF51010 NK5/10TN NK5/10BTN
In stock
Price Break
10+
CHF 7.27
19+
CHF 6.86
29+
CHF 6.78
39+
CHF 6.70
49+
CHF 6.62
74+
CHF 6.54
99+
CHF 6.13
199+
CHF 6.05
249+
CHF 5.97
499+
CHF 5.88
999+
CHF 5.72
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
Equivalent: TAF51010 NK5/10TN NK5/10BTN
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 10mm
- Width:
- 10mm
Technical
Technical
| Fw | 5mm |
|---|---|
| D | 10mm |
| C | 10mm |
| Dynamic load | 2290 N |
| Static load | 2000 N |
| Fatigue load limit Pu | 212 N |
| Speed in grease | 36000 rpm |
| Speed in oil | 50000 rpm |
| r1r2 | 0.15mm |
| Da max | 8.8mm |
| ra max | 0.1mm |
| Seal | G5x10x2 |
| Weight | 3.1 g |
