SKU: NK50/25RCT-NTN

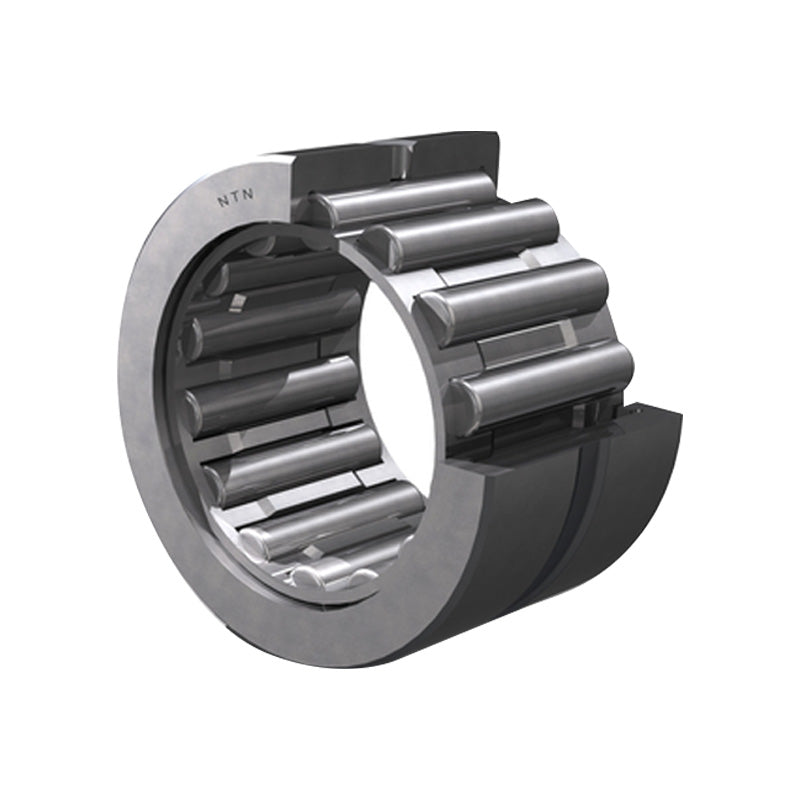

NTN NK50/25RCT Machined Needle Roller Bearing no Shaft Sleeve 50x62x25mm

NTN NK50/25RCT Machined Needle Roller Bearing no Shaft Sleeve 50x62x25mm
Regular price CHF 23.00 ex VAT
Regular price Sale price CHF 23.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 18.07
4+ CHF 17.05
9+ CHF 16.85
19+ CHF 16.65
49+ CHF 16.44
99+ CHF 16.24
499+ CHF 15.23
999+ CHF 15.02
1999+ CHF 14.82
2999+ CHF 14.62
4999+ CHF 14.21
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 50mm
D - Outside diameter 62mm
C - Width of bearing, drawn cup or outer ring 25mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 74.5 kN
N - Grease lubrication limit speed 5500 tr/min
N - Oil lubrication limit speed 8500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 58mm
ras max - Maximum shaft & housing fillet radius 0.6mm
