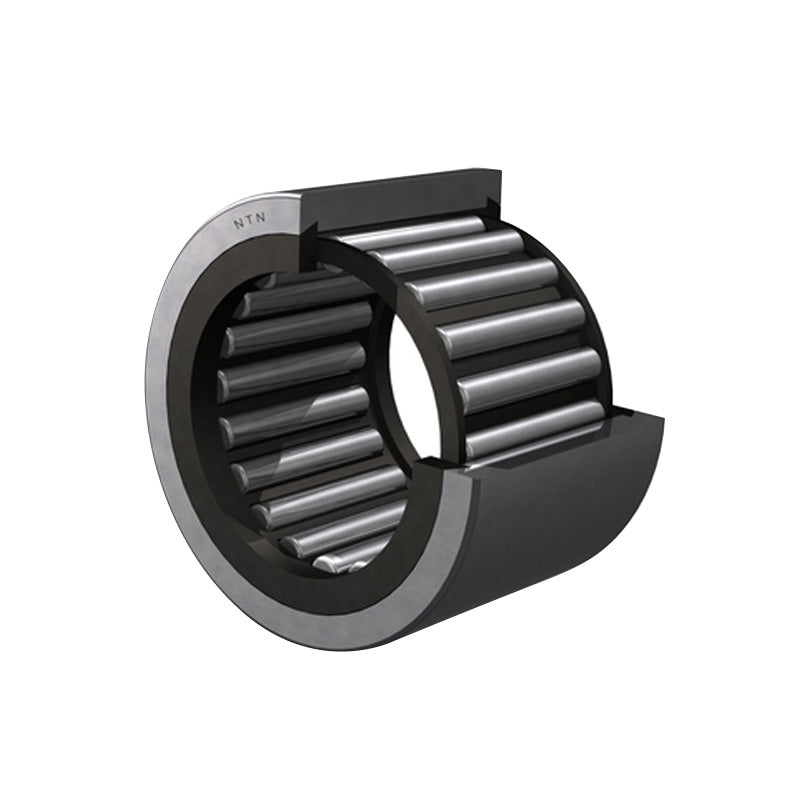

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm
Regular price CHF 10.00 ex VAT
Regular price Sale price CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 7.35
4+ CHF 6.94
9+ CHF 6.86
19+ CHF 6.77
49+ CHF 6.69
99+ CHF 6.61
499+ CHF 6.20
999+ CHF 6.11
1999+ CHF 6.03
2999+ CHF 5.95
4999+ CHF 5.78
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 6mm
D - Outside diameter 12mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 3.4 kN
C0r - Static load rating 3.15 kN
N - Grease lubrication limit speed 25000 tr/min
N - Oil lubrication limit speed 37000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 7.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
