SKU: NK6/12TN-MB

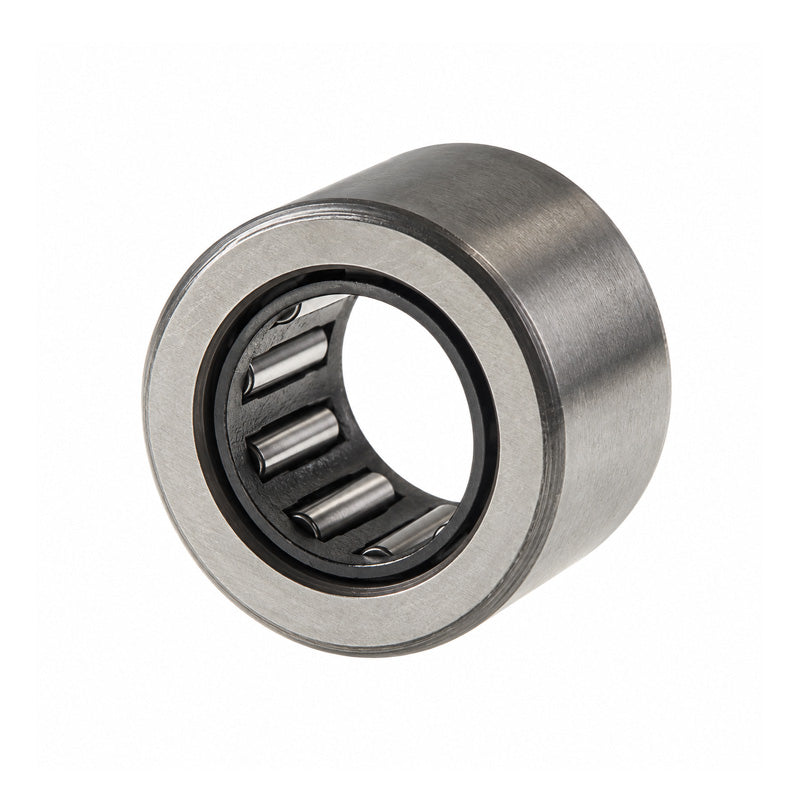

Major Brand NK6/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x12mm
Major Brand NK6/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x12mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.49
19+
CHF 7.07
29+
CHF 6.99
39+
CHF 6.90
49+
CHF 6.82
74+
CHF 6.73
99+
CHF 6.31
199+
CHF 6.23
249+
CHF 6.15
499+
CHF 6.06
999+
CHF 5.89
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 12mm
Technical
Technical
| Fw | 6mm |
|---|---|
| D | 12mm |
| C | 12mm |
| Dynamic load | 3300 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Speed in grease | 32000 rpm |
| Speed in oil | 45000 rpm |
| r1r2 | 0.15mm |
| Da max | 10.8mm |
| ra max | 0.1mm |
| Seal | G6x12x2 |
| Weight | 5.7 g |
