SKU: NK60/25-MB

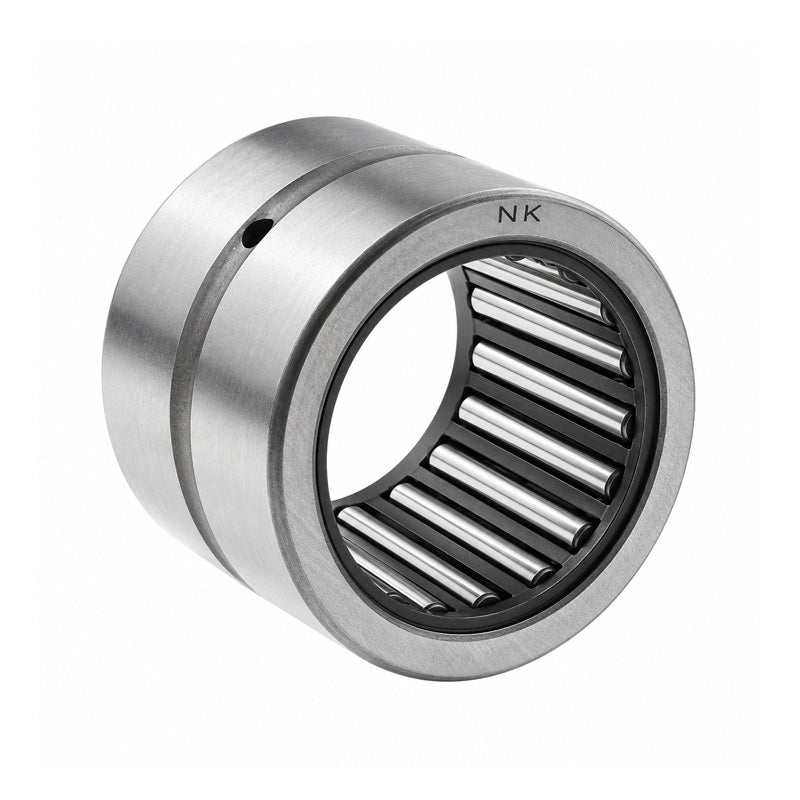

Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm
Major Brand NK60/25 Needle Roller Bearing With Flanges without Shaft Sleeve 60x72x25mm
Regular price
CHF 56.33
ex VAT
Regular price
Sale price
CHF 56.33
ex VAT
In stock
Price Break
10+
CHF 50.13
19+
CHF 47.32
29+
CHF 46.75
39+
CHF 46.19
49+
CHF 45.63
74+
CHF 45.06
99+
CHF 42.25
199+
CHF 41.68
249+
CHF 41.12
499+
CHF 40.56
999+
CHF 39.43
Couldn't load pickup availability
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 25mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 25mm |
| Dynamic load | 41800 N |
| Static load | 96500 N |
| Fatigue load limit Pu | 12200 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| r1r2 | 0.6mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 190 g |
