SKU: NK60/35R-NTN

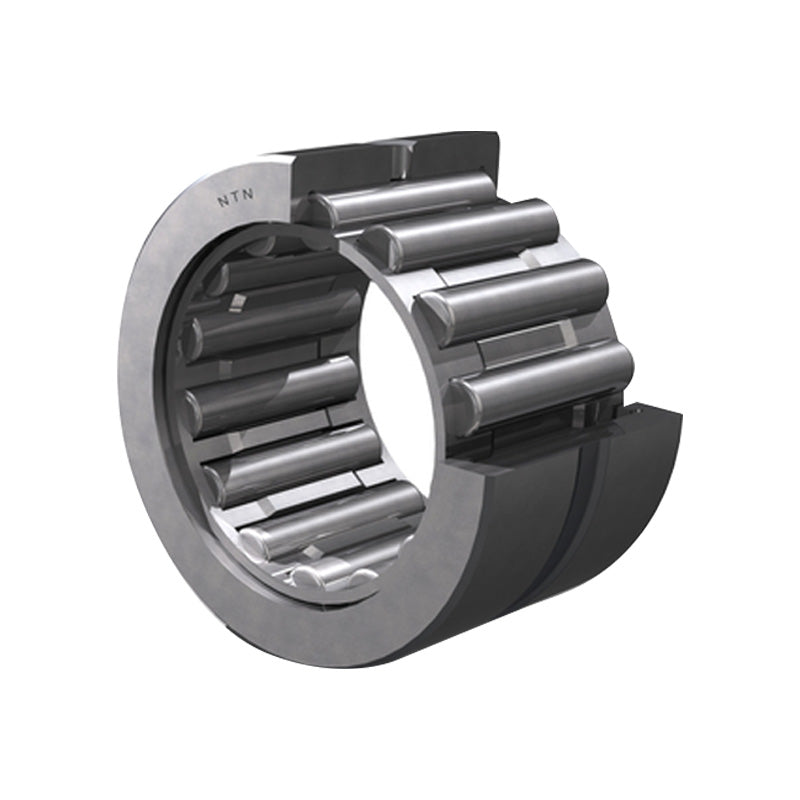

NTN NK60/35R Machined Needle Roller Bearing no Shaft Sleeve 60x72x35mm - Allow 2-3 Days

NTN NK60/35R Machined Needle Roller Bearing no Shaft Sleeve 60x72x35mm - Allow 2-3 Days
Regular price CHF 35.00 ex VAT
Regular price Sale price CHF 35.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 30.72
4+ CHF 29.48
9+ CHF 28.86
19+ CHF 27.93
49+ CHF 27.31
99+ CHF 25.75
499+ CHF 21.72
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 60mm
D - Outside diameter 72mm
C - Width of bearing, drawn cup or outer ring 35mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 57 kN
C0r - Static load rating 130 kN
N - Grease lubrication limit speed 4300 tr/min
N - Oil lubrication limit speed 6500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 68mm
ras max - Maximum shaft & housing fillet radius 0.6mm
