SKU: NK8/16TN-MB

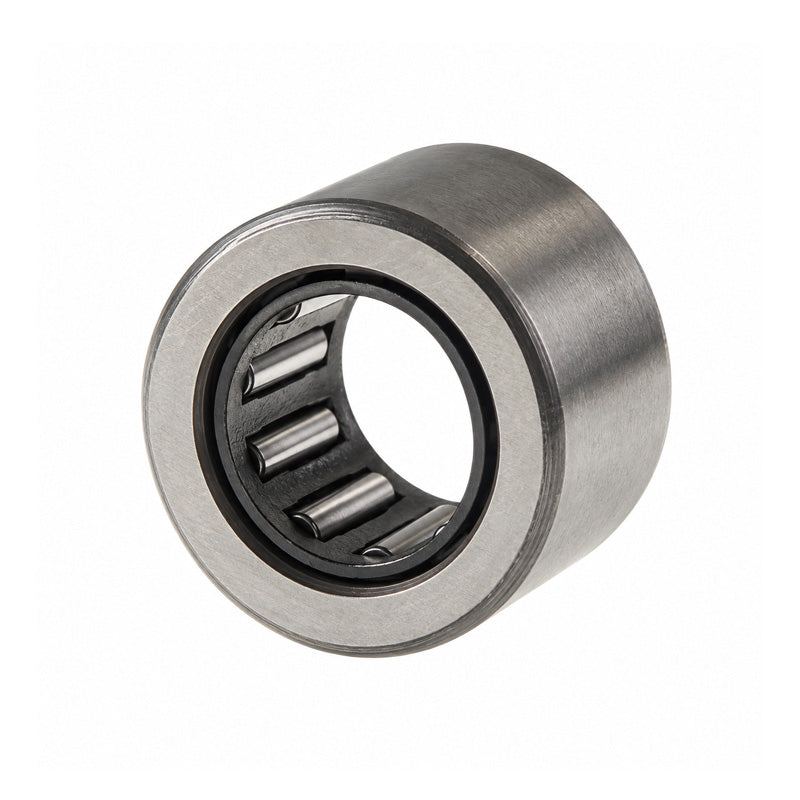

Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
Regular price
CHF 11.00
ex VAT
Regular price
Sale price
CHF 11.00
ex VAT
In stock
Price Break
10+
CHF 7.99
19+
CHF 7.55
29+
CHF 7.46
39+
CHF 7.37
49+
CHF 7.28
74+
CHF 7.19
99+
CHF 6.74
199+
CHF 6.65
249+
CHF 6.56
499+
CHF 6.47
999+
CHF 6.29
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 15mm
- Width:
- 16mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 15mm |
| C | 16mm |
| Dynamic load | 5010 N |
| Static load | 5850 N |
| Fatigue load limit Pu | 670 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| r1r2 | 0.3mm |
| Da max | 13mm |
| ra max | 0.3mm |
| Seal | G/SD8x15x3 |
| Weight | 12 g |
