SKU: NK85/25-MB

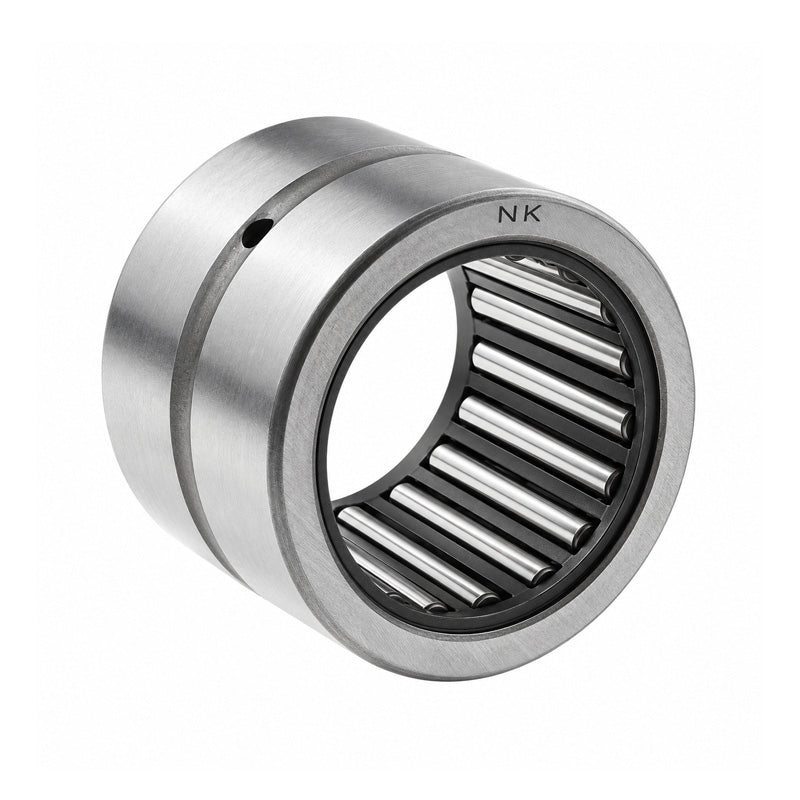

Major Brand NK85/25 Needle Roller Bearing With Flanges without Shaft Sleeve 85x105x25mm
Major Brand NK85/25 Needle Roller Bearing With Flanges without Shaft Sleeve 85x105x25mm
Regular price
CHF 58.00
ex VAT
Regular price
Sale price
CHF 58.00
ex VAT
In stock
Price Break
10+
CHF 45.74
19+
CHF 43.17
29+
CHF 42.65
39+
CHF 42.14
49+
CHF 41.63
74+
CHF 41.11
99+
CHF 38.54
199+
CHF 38.03
249+
CHF 37.51
499+
CHF 37.00
999+
CHF 35.97
Description
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 105mm
- Width:
- 25mm
Technical
Technical
| Fw | 85mm |
|---|---|
| D | 105mm |
| C | 25mm |
| Dynamic load | 69300 N |
| Static load | 132000 N |
| Fatigue load limit Pu | 17000 N |
| Speed in grease | 3400 rpm |
| Speed in oil | 4800 rpm |
| r1r2 | 1mm |
| Da max | 100mm |
| ra max | 1mm |
| Seal | CR85x105x10CRW1R |
| Weight | 430 g |
