SKU: NKI42/20-EU

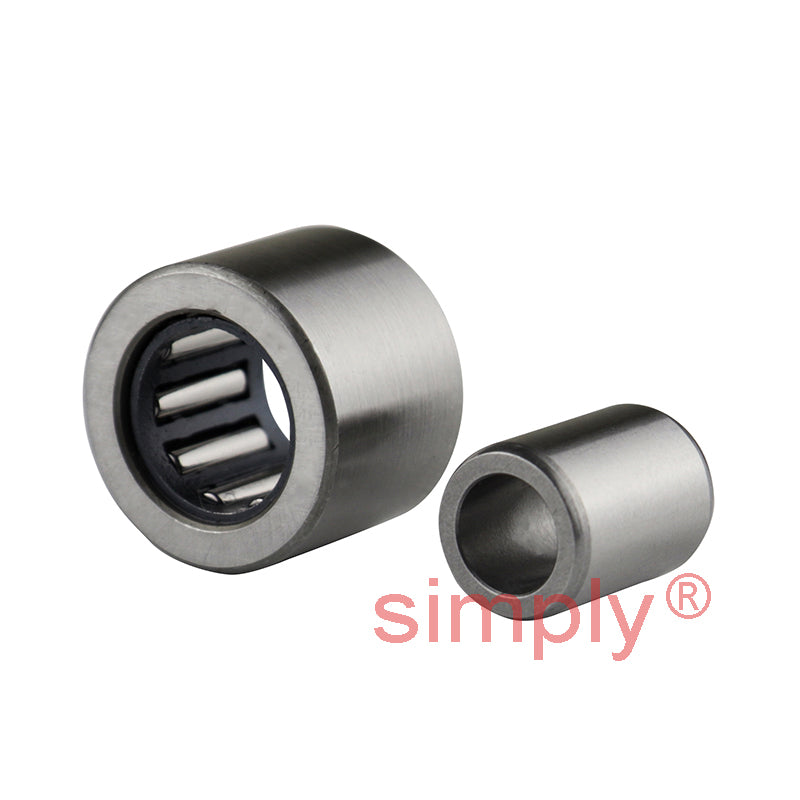

NKI42/20 Budget Needle Roller Bearing / Shaft Sleeve 42x57x20mm

Name: NKI42/20 Budget Needle Roller Bearing / Shaft Sleeve 42x57x20mm
Brand: Gen
SKU: NKI42/20-EU
Price: 11.00 CHF
Availability: InStock

CHF 11.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 8.55

19+ CHF 8.07

29+ CHF 7.98

39+ CHF 7.88

49+ CHF 7.78

74+ CHF 7.69

99+ CHF 7.21

199+ CHF 7.11

249+ CHF 7.02

499+ CHF 6.92

999+ CHF 6.73

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 42mm
Outside Diameter:: 57mm
Width:: 20mm

Technical

d	42mm
D	57mm
B	20mm
Dynamic load C	29200 N
Static load Co	61000 N
Fatigue load limit Pu	7650 N
Speed in grease	6000 rpm
Speed in oil	8500 rpm
F	47mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	44mm
Da max	55mm
ra max	0.3mm
