SKU: NKI55/35-EU

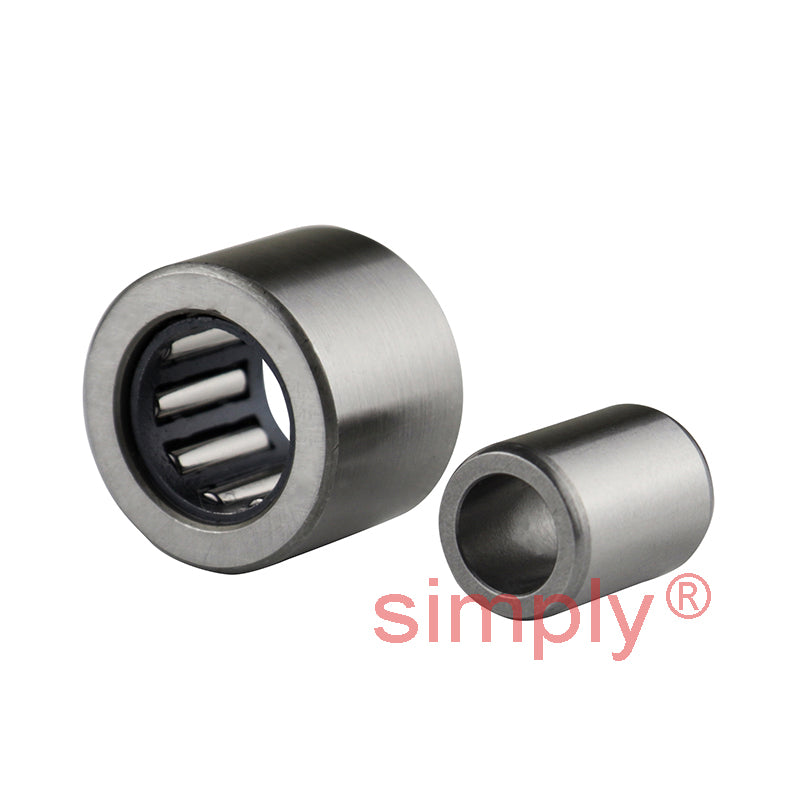

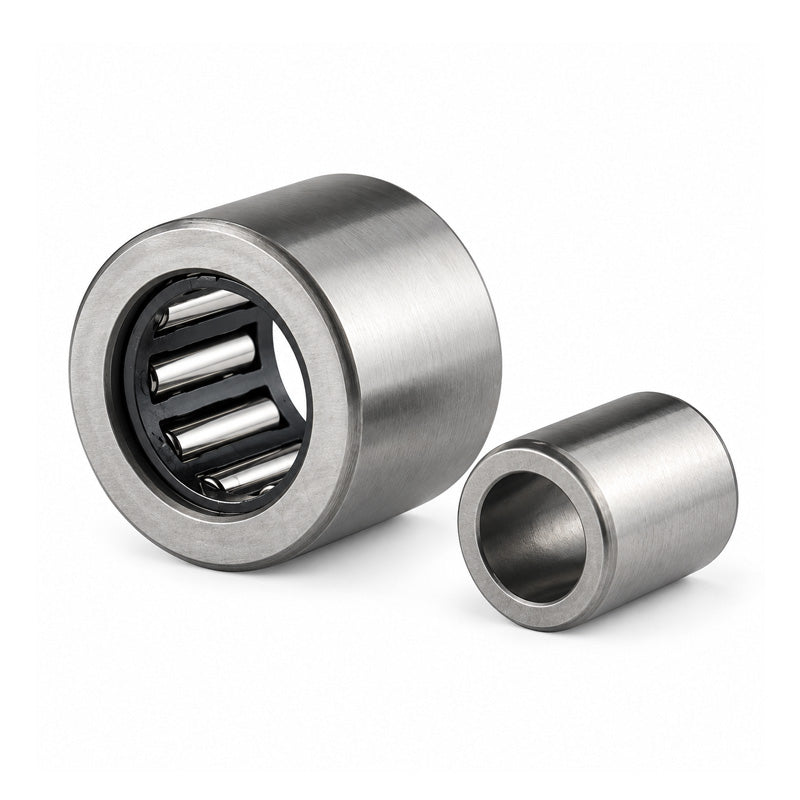

NKI55/35 Budget Needle Roller Bearing / Shaft Sleeve 55x72x35mm
NKI55/35 Budget Needle Roller Bearing / Shaft Sleeve 55x72x35mm
Regular price
CHF 56.78
ex VAT
Regular price
Sale price
CHF 56.78
ex VAT
In stock
Price Break
10+
CHF 50.53
19+
CHF 47.70
29+
CHF 47.13
39+
CHF 46.56
49+
CHF 45.99
74+
CHF 45.42
99+
CHF 42.59
199+
CHF 42.02
249+
CHF 41.45
499+
CHF 40.88
999+
CHF 39.75
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve. Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 72mm
- Width:
- 35mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 72mm |
| B | 35mm |
| Dynamic load C | 55000 N |
| Static load Co | 134000 N |
| Fatigue load limit Pu | 17600 N |
| Speed in grease | 4800 rpm |
| Speed in oil | 6700 rpm |
| F | 60mm |
| r1r2 | 0.6mm |
| S (axial disp) | 2mm |
| da min | 59mm |
| Da max | 68mm |
| ra max | 0.6mm |
