SKU: NKIA5901-MB

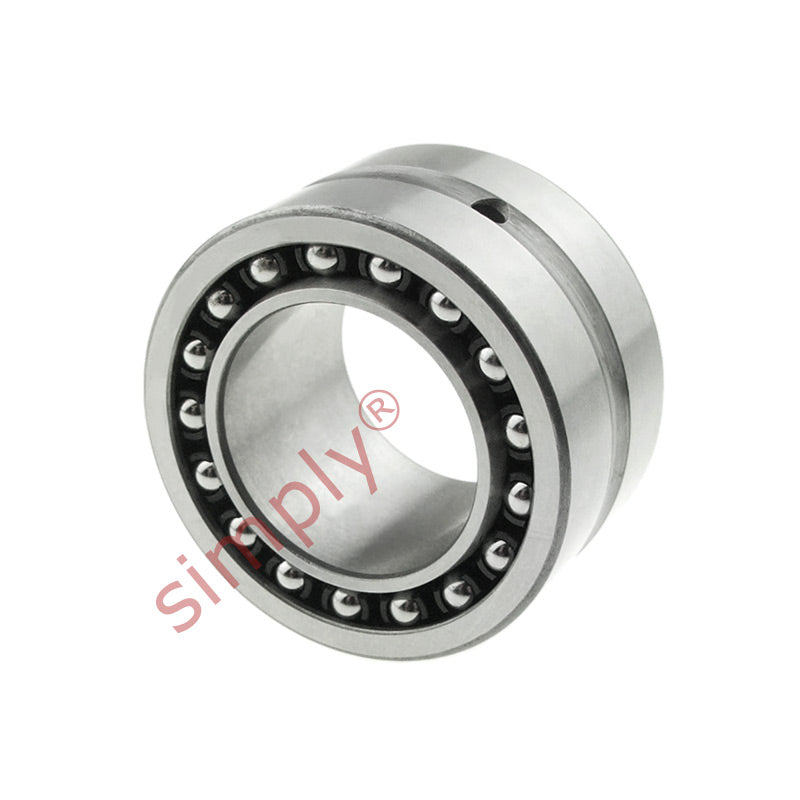

Major Brand NKIA5901 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5901 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
CHF 20.83
ex VAT
Regular price
Sale price
CHF 20.83
ex VAT
In stock
Price Break
10+
CHF 18.54
19+
CHF 17.50
29+
CHF 17.29
39+
CHF 17.08
49+
CHF 16.87
74+
CHF 16.66
99+
CHF 15.62
199+
CHF 15.41
249+
CHF 15.21
499+
CHF 15.00
999+
CHF 14.58
Couldn't load pickup availability
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 16mm |
| Radial dynamic load | 8250 N |
| Radial static load | 10000 N |
| Axial dynamic load | 2070 N |
| Axial static load | 1920 N |
| Fatigue load limit radial Pu | 1140 N |
| Fatigue load limit axial Pu | 83 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
