SKU: NKIA5902-EU

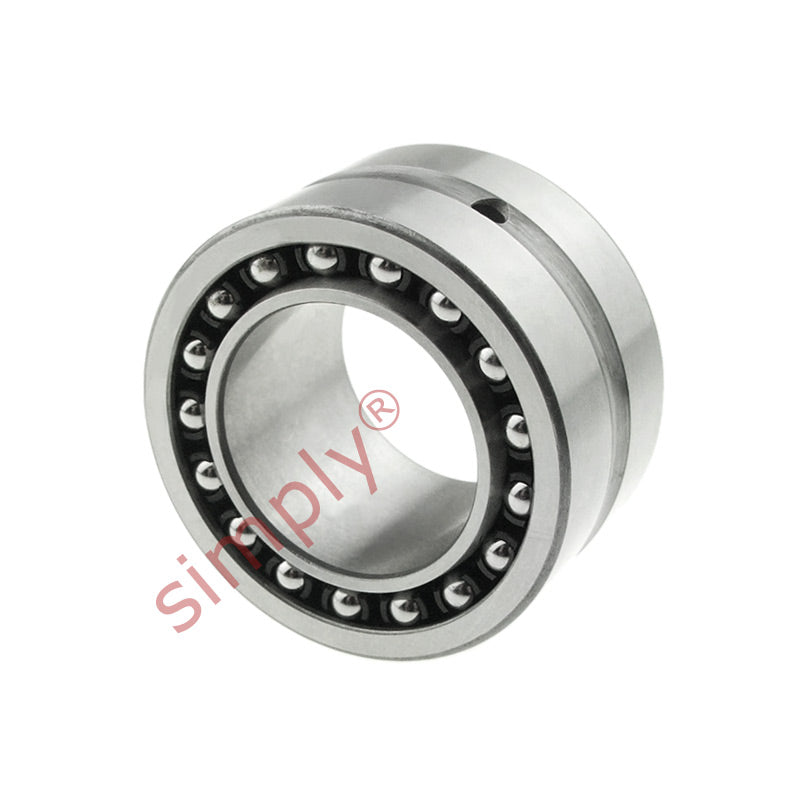

NKIA5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x18mm
NKIA5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x18mm
Regular price
CHF 14.31
ex VAT
Regular price
Sale price
CHF 14.31
ex VAT
In stock
Price Break
10+
CHF 12.74
19+
CHF 12.02
29+
CHF 11.88
39+
CHF 11.73
49+
CHF 11.59
74+
CHF 11.45
99+
CHF 10.73
199+
CHF 10.59
249+
CHF 10.45
499+
CHF 10.30
999+
CHF 10.02
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 18mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Weight | 50 g |
