SKU: NKIA5905-MB

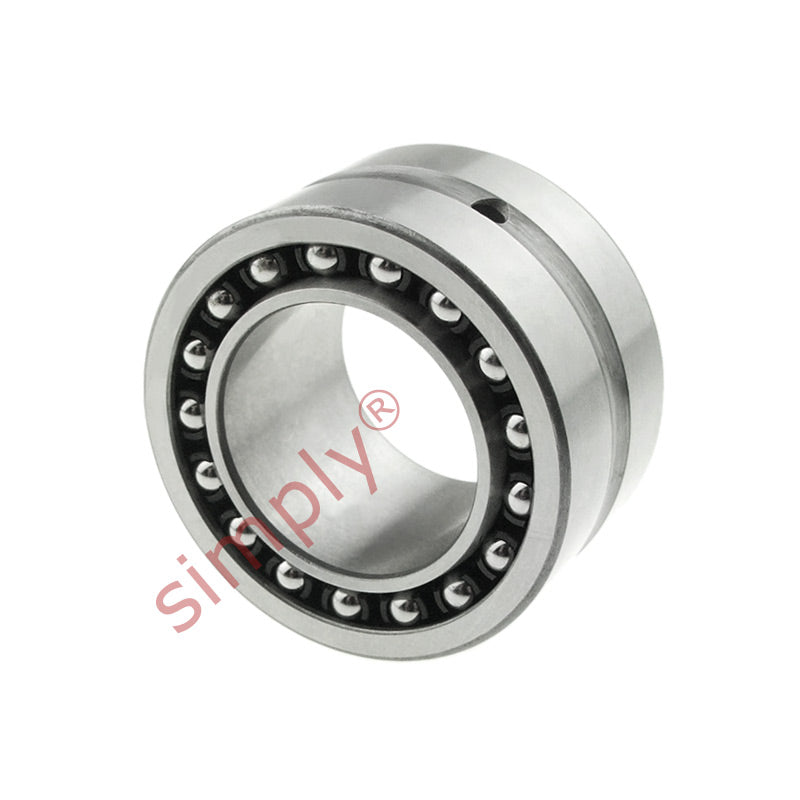

Major Brand NKIA5905 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Major Brand NKIA5905 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
In stock
Price Break
10+
CHF 36.55
19+
CHF 34.50
29+
CHF 34.09
39+
CHF 33.68
49+
CHF 33.27
74+
CHF 32.86
99+
CHF 30.80
199+
CHF 30.39
249+
CHF 29.98
499+
CHF 29.57
999+
CHF 28.75
Share this product
Description
Description
Needle Roller / Angular Contact Combined : Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 23mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
