SKU: NKIA5911-EU

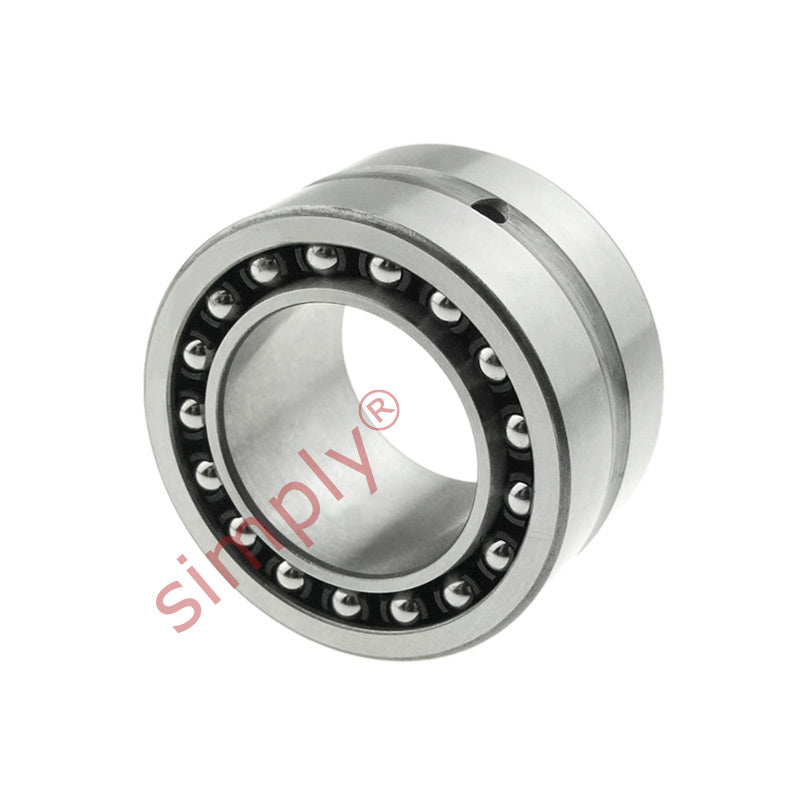

NKIA5911 Budget Needle Roller / Angular Contact Ball Bearing 55x80x34mm
NKIA5911 Budget Needle Roller / Angular Contact Ball Bearing 55x80x34mm
Regular price
CHF 122.20
ex VAT
Regular price
Sale price
CHF 122.20
ex VAT
In stock
Price Break
10+
CHF 108.76
19+
CHF 102.65
29+
CHF 101.43
39+
CHF 100.20
49+
CHF 98.98
74+
CHF 97.76
99+
CHF 91.65
199+
CHF 90.43
249+
CHF 89.21
499+
CHF 87.98
999+
CHF 85.54
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 34mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 80mm |
| B | 34mm |
| Radial dynamic load | 57200 N |
| Radial static load | 104000 N |
| Axial dynamic load | 9270 N |
| Axial static load | 16700 N |
| Fatigue load limit radial Pu | 13200 N |
| Fatigue load limit axial Pu | 697 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| F | 63mm |
| r1r2 | 1mm |
| da min | 60mm |
| Da max | 75mm |
| ra max | 1mm |
| Weight | 550 g |
