SKU: NKIB5901-EU

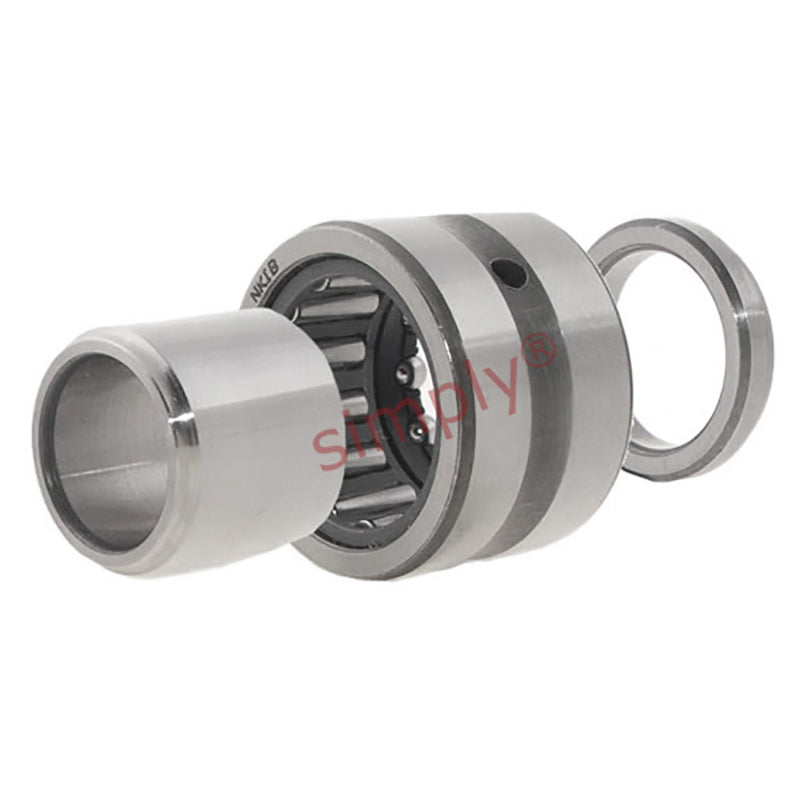

NKIB5901 Budget Needle Roller / Angular Contact Ball Bearing 12x24x17.5mm
NKIB5901 Budget Needle Roller / Angular Contact Ball Bearing 12x24x17.5mm
Regular price
CHF 10.89
ex VAT
Regular price
Sale price
CHF 10.89
ex VAT
In stock
Price Break
10+
CHF 9.69
19+
CHF 9.15
29+
CHF 9.04
39+
CHF 8.93
49+
CHF 8.82
74+
CHF 8.71
99+
CHF 8.17
199+
CHF 8.06
249+
CHF 7.95
499+
CHF 7.84
999+
CHF 7.62
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 17.5mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 17.5mm |
| C | 16mm |
| Radial dynamic load | 8250 N |
| Radial static load | 10000 N |
| Axial dynamic load | 2070 N |
| Axial static load | 1920 N |
| Fatigue load limit radial Pu | 1140 N |
| Fatigue load limit axial Pu | 83 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Weight | 43 g |
