SKU: NKIB5901-MB

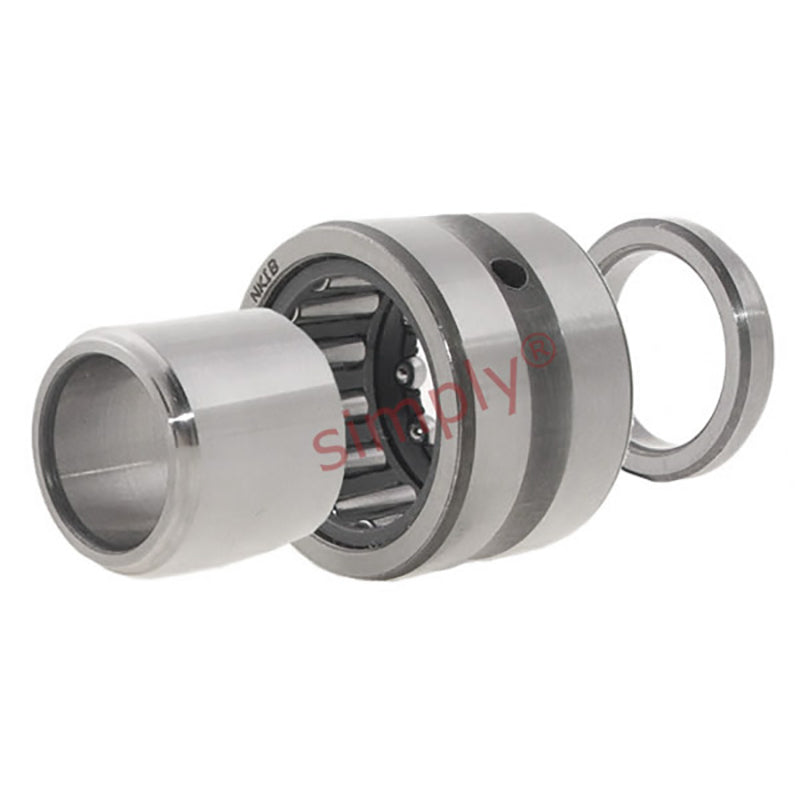

Major Brand NKIB5901 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5901 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
CHF 23.04
ex VAT
Regular price
Sale price
CHF 23.04
ex VAT
In stock
Price Break
10+
CHF 20.51
19+
CHF 19.35
29+
CHF 19.12
39+
CHF 18.89
49+
CHF 18.66
74+
CHF 18.43
99+
CHF 17.28
199+
CHF 17.05
249+
CHF 16.82
499+
CHF 16.59
999+
CHF 16.13
Couldn't load pickup availability
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 17.5mm
Technical
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 17.5mm |
| C | 16mm |
| Radial dynamic load | 8250 N |
| Radial static load | 10000 N |
| Axial dynamic load | 2070 N |
| Axial static load | 1920 N |
| Fatigue load limit radial Pu | 1140 N |
| Fatigue load limit axial Pu | 83 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| F | 16mm |
| r1r2 | 0.3mm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
