SKU: NKIB5902-MB

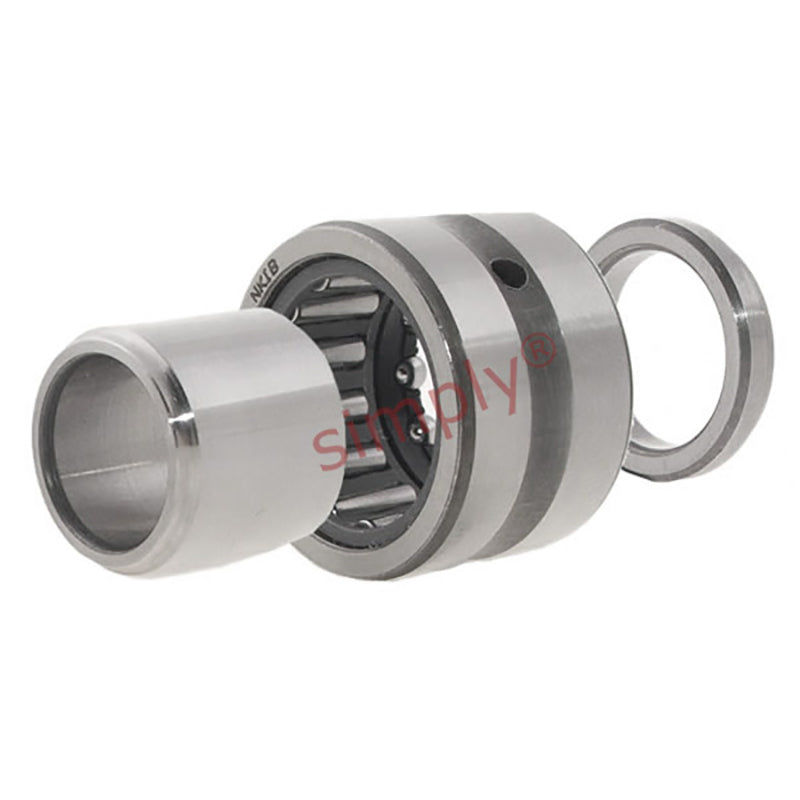

Major Brand NKIB5902 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5902 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
CHF 40.00
ex VAT
Regular price
Sale price
CHF 40.00
ex VAT
In stock
Price Break
10+
CHF 31.63
19+
CHF 29.86
29+
CHF 29.50
39+
CHF 29.15
49+
CHF 28.79
74+
CHF 28.44
99+
CHF 26.66
199+
CHF 26.30
249+
CHF 25.95
499+
CHF 25.59
999+
CHF 24.88
Share this product
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 28mm |
| B | 20mm |
| C | 18mm |
| Radial dynamic load | 11400 N |
| Radial static load | 15600 N |
| Axial dynamic load | 2270 N |
| Axial static load | 2370 N |
| Fatigue load limit radial Pu | 1830 N |
| Fatigue load limit axial Pu | 99 N |
| Speed in grease | 13000 rpm |
| Speed in oil | 19000 rpm |
| F | 20mm |
| r1r2 | 0.3mm |
| da min | 17mm |
| Da max | 26mm |
| ra max | 0.3mm |
