SKU: NKIB5905-EU

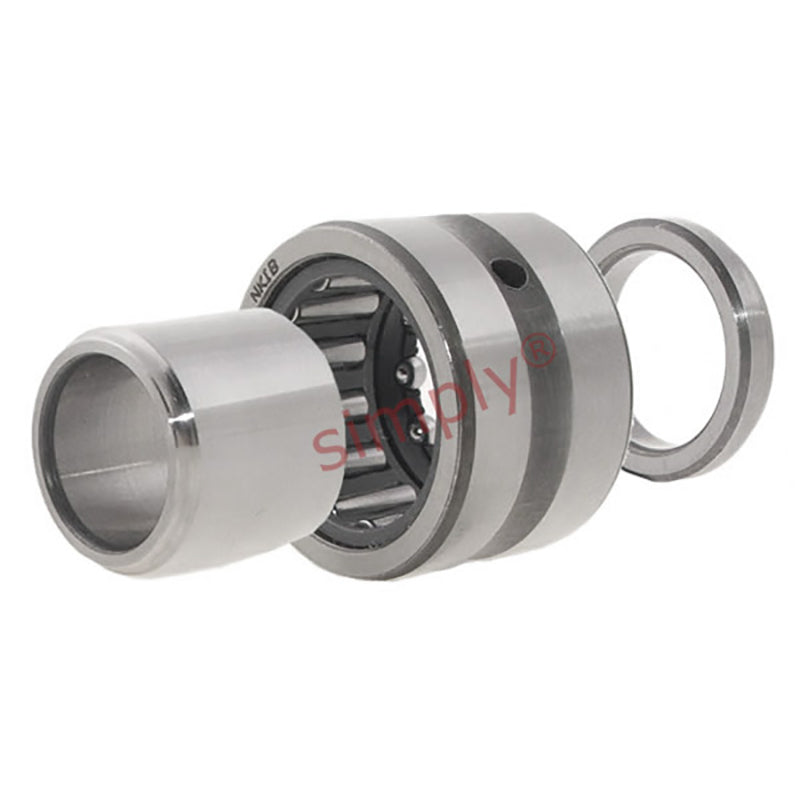

NKIB5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x25mm
NKIB5905 Budget Needle Roller / Angular Contact Ball Bearing 25x42x25mm
Regular price
CHF 23.30
ex VAT
Regular price
Sale price
CHF 23.30
ex VAT
In stock
Price Break
10+
CHF 20.74
19+
CHF 19.57
29+
CHF 19.34
39+
CHF 19.11
49+
CHF 18.87
74+
CHF 18.64
99+
CHF 17.48
199+
CHF 17.24
249+
CHF 17.01
499+
CHF 16.78
999+
CHF 16.31
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 25mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 24200 N |
| Radial static load | 34500 N |
| Axial dynamic load | 4240 N |
| Axial static load | 5260 N |
| Fatigue load limit radial Pu | 4150 N |
| Fatigue load limit axial Pu | 224 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 30mm |
| r1r2 | 0.3mm |
| da min | 27mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 130 g |
