SKU: NKIB5906-EU

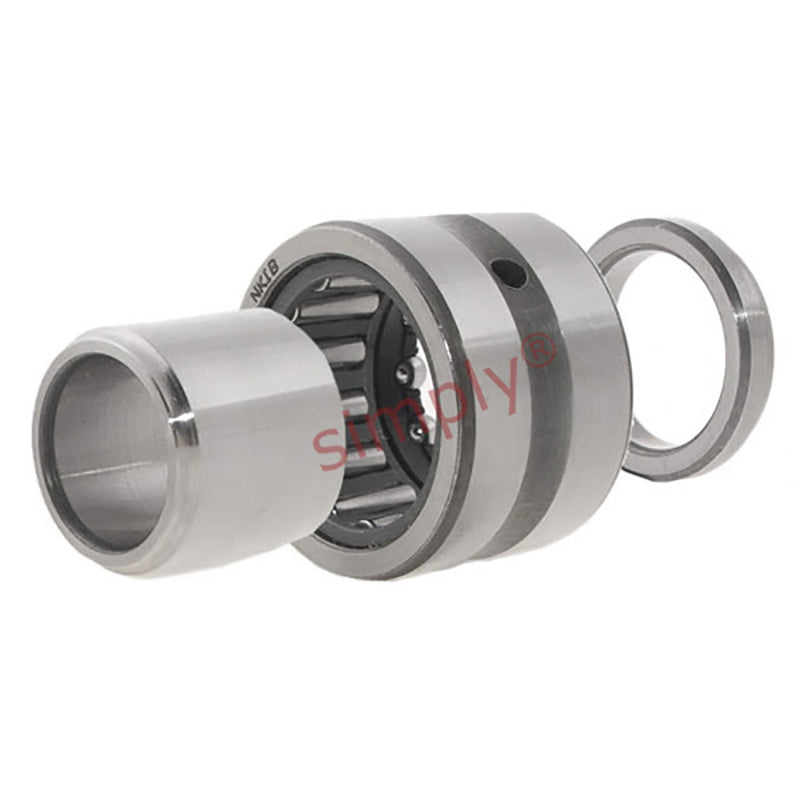

NKIB5906 Budget Needle Roller / Angular Contact Ball Bearing 30x47x25mm
NKIB5906 Budget Needle Roller / Angular Contact Ball Bearing 30x47x25mm
Regular price
CHF 29.52
ex VAT
Regular price
Sale price
CHF 29.52
ex VAT
In stock
Price Break
10+
CHF 26.27
19+
CHF 24.80
29+
CHF 24.50
39+
CHF 24.21
49+
CHF 23.91
74+
CHF 23.62
99+
CHF 22.14
199+
CHF 21.84
249+
CHF 21.55
499+
CHF 21.25
999+
CHF 20.66
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 25mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 25500 N |
| Radial static load | 39000 N |
| Axial dynamic load | 4540 N |
| Axial static load | 6320 N |
| Fatigue load limit radial Pu | 4650 N |
| Fatigue load limit axial Pu | 268 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| F | 35mm |
| r1r2 | 0.3mm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 150 g |
