SKU: NKIB5907-EU

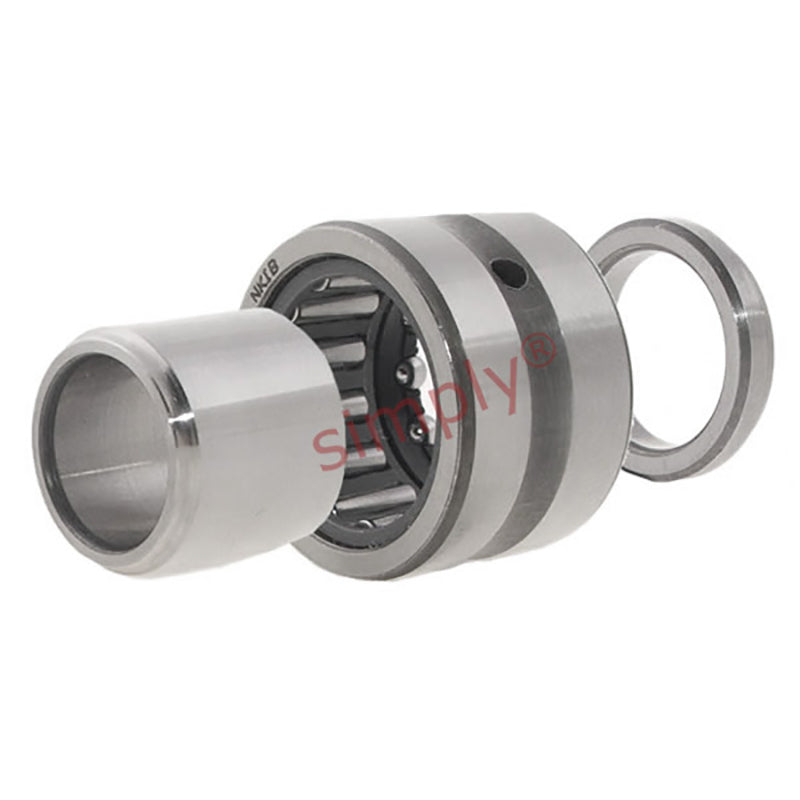

NKIB5907 Budget Needle Roller / Angular Contact Ball Bearing 35x55x30mm
NKIB5907 Budget Needle Roller / Angular Contact Ball Bearing 35x55x30mm
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
In stock
Price Break
10+
CHF 29.67
19+
CHF 28.01
29+
CHF 27.67
39+
CHF 27.34
49+
CHF 27.01
74+
CHF 26.67
99+
CHF 25.01
199+
CHF 24.67
249+
CHF 24.34
499+
CHF 24.00
999+
CHF 23.34
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical

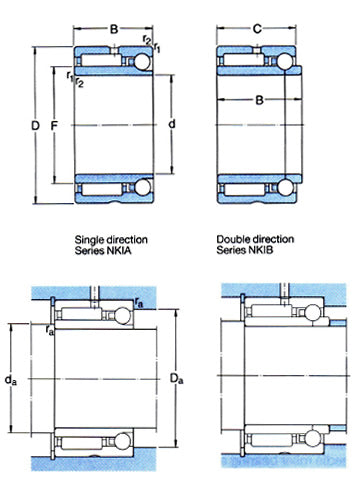

| d | 35mm |
|---|---|
| D | 55mm |
| B | 30mm |
| C | 27mm |
| Radial dynamic load | 31900 N |
| Radial static load | 54000 N |
| Axial dynamic load | 5830 N |
| Axial static load | 8420 N |
| Fatigue load limit radial Pu | 6700 N |
| Fatigue load limit axial Pu | 355 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 42mm |
| r1r2 | 0.6mm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
| Weight | 250 g |
