SKU: NKIB5907-MB

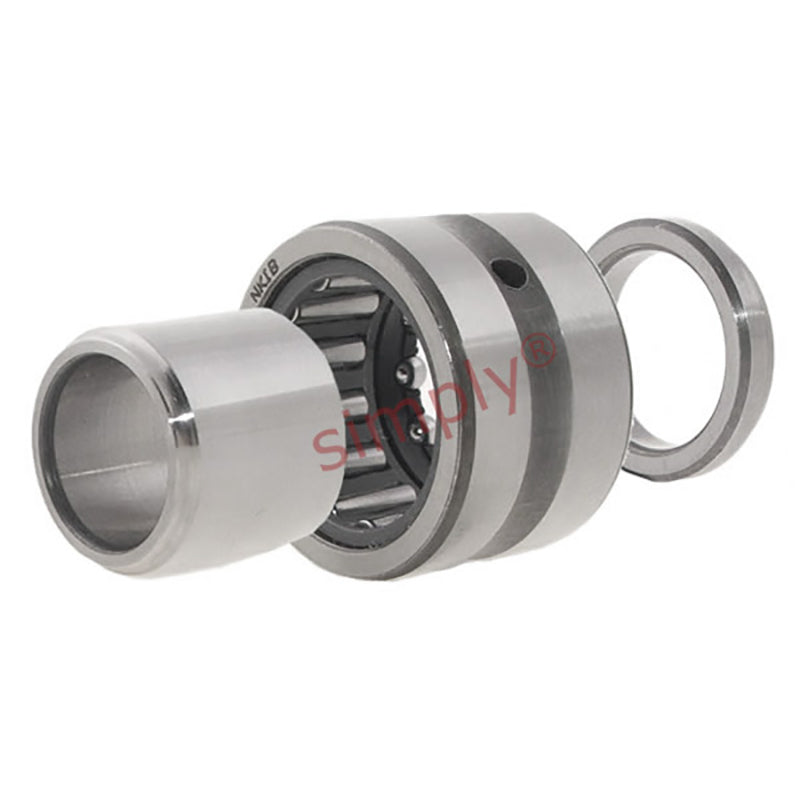

Major Brand NKIB5907 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5907 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
CHF 76.00
ex VAT
Regular price
Sale price
CHF 76.00
ex VAT
In stock
Price Break
10+
CHF 60.31
19+
CHF 56.92
29+
CHF 56.25
39+
CHF 55.57
49+
CHF 54.89
74+
CHF 54.21
99+
CHF 50.83
199+
CHF 50.15
249+
CHF 49.47
499+
CHF 48.79
999+
CHF 47.44
Share this product
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 30mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 30mm |
| C | 27mm |
| Radial dynamic load | 31900 N |
| Radial static load | 54000 N |
| Axial dynamic load | 5830 N |
| Axial static load | 8420 N |
| Fatigue load limit radial Pu | 6700 N |
| Fatigue load limit axial Pu | 355 N |
| Speed in grease | 6700 rpm |
| Speed in oil | 9500 rpm |
| F | 42mm |
| r1r2 | 0.6mm |
| da min | 39mm |
| Da max | 51mm |
| ra max | 0.6mm |
