SKU: NKIB5910-EU

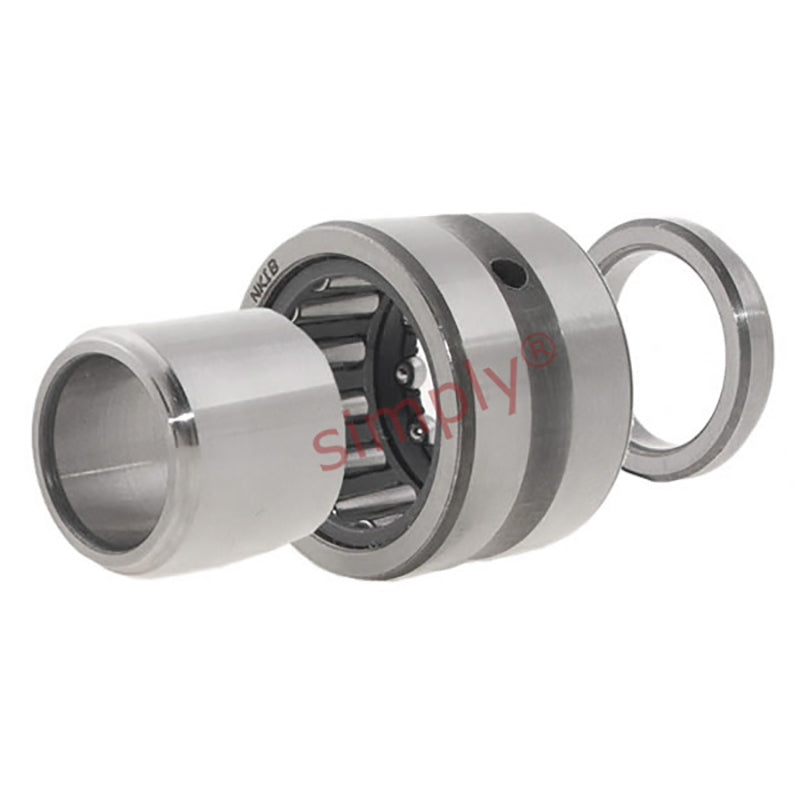

NKIB5910 Budget Needle Roller / Angular Contact Ball Bearing 50x72x34mm
NKIB5910 Budget Needle Roller / Angular Contact Ball Bearing 50x72x34mm
Regular price
CHF 41.04
ex VAT
Regular price
Sale price
CHF 41.04
ex VAT
In stock
Price Break
10+
CHF 36.53
19+
CHF 34.47
29+
CHF 34.06
39+
CHF 33.65
49+
CHF 33.24
74+
CHF 32.83
99+
CHF 30.78
199+
CHF 30.37
249+
CHF 29.96
499+
CHF 29.55
999+
CHF 28.73
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 34mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 72mm |
| B | 34mm |
| C | 30mm |
| Radial dynamic load | 47300 N |
| Radial static load | 85000 N |
| Axial dynamic load | 7740 N |
| Axial static load | 13700 N |
| Fatigue load limit radial Pu | 10600 N |
| Fatigue load limit axial Pu | 579 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 58mm |
| r1r2 | 0.6mm |
| da min | 54mm |
| Da max | 68mm |
| ra max | 0.6mm |
| Weight | 390 g |
