SKU: NKIB5911-EU

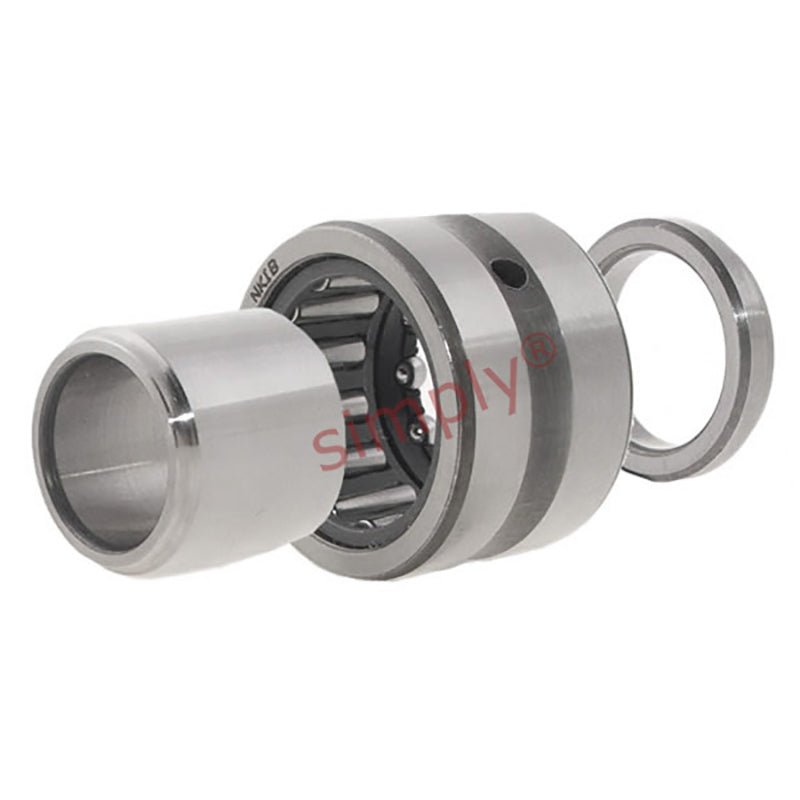

NKIB5911 Budget Needle Roller / Angular Contact Ball Bearing 55x80x38mm
NKIB5911 Budget Needle Roller / Angular Contact Ball Bearing 55x80x38mm
Regular price
CHF 121.60
ex VAT
Regular price
Sale price
CHF 121.60
ex VAT
In stock
Price Break
10+
CHF 108.22
19+
CHF 102.14
29+
CHF 100.93
39+
CHF 99.71
49+
CHF 98.50
74+
CHF 97.28
99+
CHF 91.20
199+
CHF 89.98
249+
CHF 88.77
499+
CHF 87.55
999+
CHF 85.12
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 38mm
Technical
Technical
| d | 55mm |
|---|---|
| D | 80mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 57200 N |
| Radial static load | 104000 N |
| Axial dynamic load | 9270 N |
| Axial static load | 16700 N |
| Fatigue load limit radial Pu | 13200 N |
| Fatigue load limit axial Pu | 697 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| F | 63mm |
| r1r2 | 1mm |
| da min | 60mm |
| Da max | 75mm |
| ra max | 1mm |
| Weight | 560 g |
