SKU: NKIB5912-EU

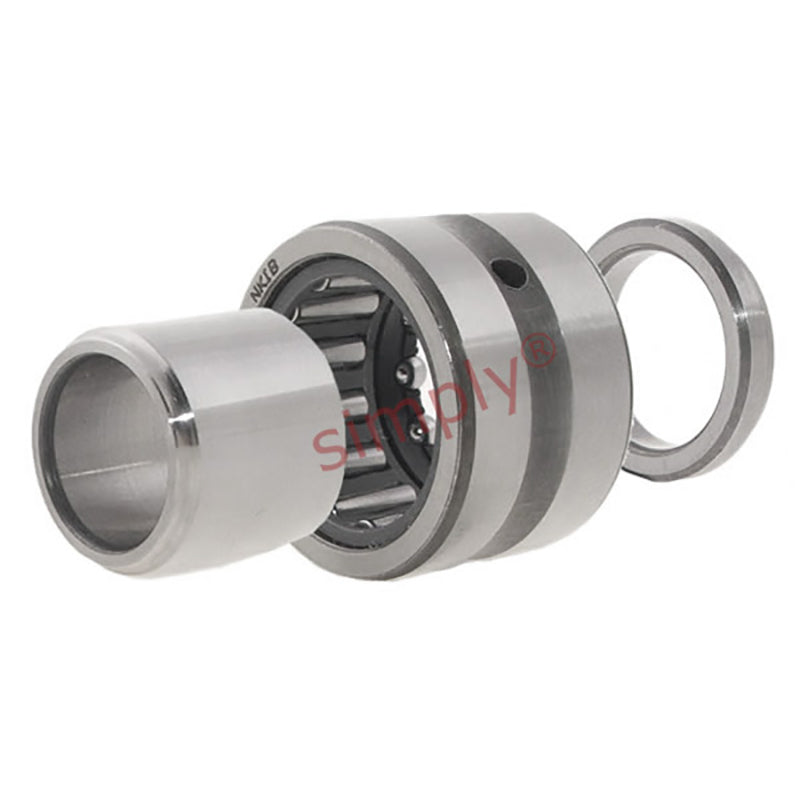

NKIB5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x38mm
NKIB5912 Budget Needle Roller / Angular Contact Ball Bearing 60x85x38mm
Regular price
CHF 147.65
ex VAT
Regular price
Sale price
CHF 147.65
ex VAT
In stock
Price Break
10+
CHF 131.41
19+
CHF 124.03
29+
CHF 122.55
39+
CHF 121.07
49+
CHF 119.60
74+
CHF 118.12
99+
CHF 110.74
199+
CHF 109.26
249+
CHF 107.78
499+
CHF 106.31
999+
CHF 103.36
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 38mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 59400 N |
| Radial static load | 114000 N |
| Axial dynamic load | 9580 N |
| Axial static load | 18000 N |
| Fatigue load limit radial Pu | 14300 N |
| Fatigue load limit axial Pu | 770 N |
| Speed in grease | 4300 rpm |
| Speed in oil | 6000 rpm |
| F | 68mm |
| r1r2 | 1mm |
| da min | 65mm |
| Da max | 80mm |
| ra max | 1mm |
| Weight | 600 g |
