SKU: NKIB5913-EU

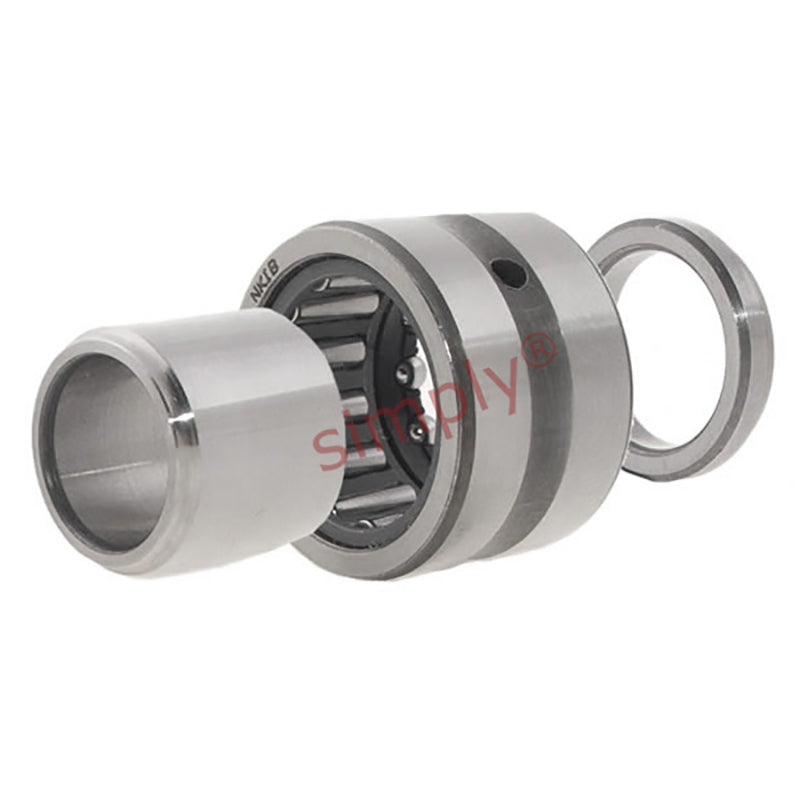

NKIB5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x38mm
NKIB5913 Budget Needle Roller / Angular Contact Ball Bearing 65x90x38mm
Regular price
CHF 95.43
ex VAT
Regular price
Sale price
CHF 95.43
ex VAT
In stock
Price Break
10+
CHF 84.93
19+
CHF 80.16
29+
CHF 79.21
39+
CHF 78.25
49+
CHF 77.30
74+
CHF 76.34
99+
CHF 71.57
199+
CHF 70.62
249+
CHF 69.66
499+
CHF 68.71
999+
CHF 66.80
Couldn't load pickup availability
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 38mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 38mm |
| C | 34mm |
| Radial dynamic load | 60500 N |
| Radial static load | 118000 N |
| Axial dynamic load | 9960 N |
| Axial static load | 19200 N |
| Fatigue load limit radial Pu | 14600 N |
| Fatigue load limit axial Pu | 816 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| F | 72mm |
| r1r2 | 1mm |
| da min | 70mm |
| Da max | 85mm |
| ra max | 1mm |
| Weight | 640 g |
