SKU: NKIB5914-EU

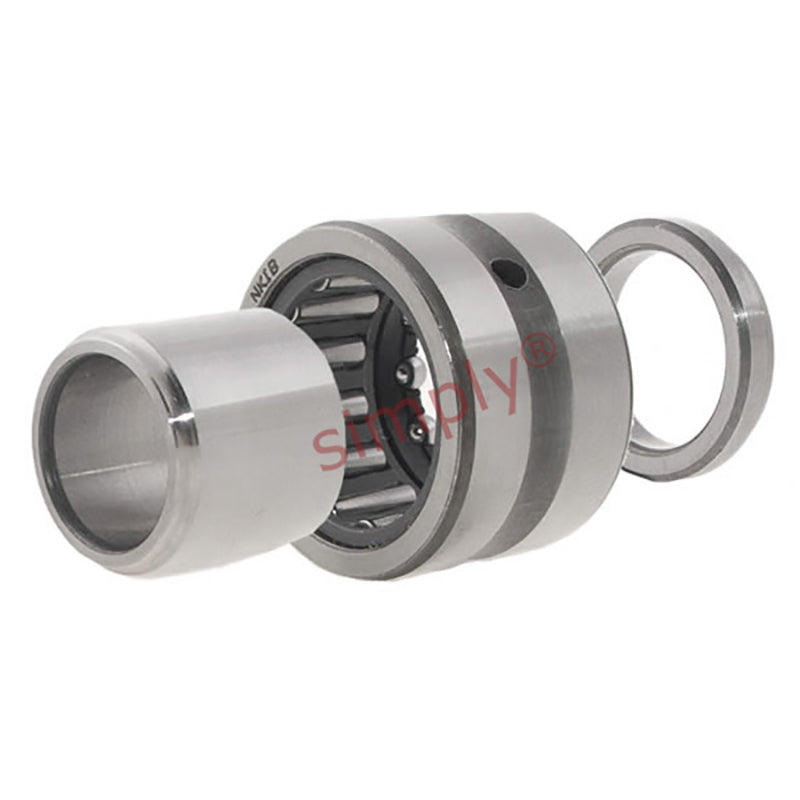

NKIB5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x45mm
NKIB5914 Budget Needle Roller / Angular Contact Ball Bearing 70x100x45mm
Regular price
CHF 202.00
ex VAT
Regular price
Sale price
CHF 202.00
ex VAT
In stock
Price Break
10+
CHF 160.61
19+
CHF 151.59
29+
CHF 149.78
39+
CHF 147.98
49+
CHF 146.18
74+
CHF 144.37
99+
CHF 135.35
199+
CHF 133.54
249+
CHF 131.74
499+
CHF 129.93
999+
CHF 126.32
Description
Description
Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required) |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 100mm
- Width:
- 45mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 100mm |
| B | 45mm |
| C | 40mm |
| Radial dynamic load | 84200 N |
| Radial static load | 163000 N |
| Axial dynamic load | 13200 N |
| Axial static load | 25000 N |
| Fatigue load limit radial Pu | 20800 N |
| Fatigue load limit axial Pu | 1050 N |
| Speed in grease | 3600 rpm |
| Speed in oil | 5000 rpm |
| F | 80mm |
| r1r2 | 1mm |
| da min | 75mm |
| Da max | 95mm |
| ra max | 1mm |
| Weight | 990 g |
