SKU: NKIS20-MB

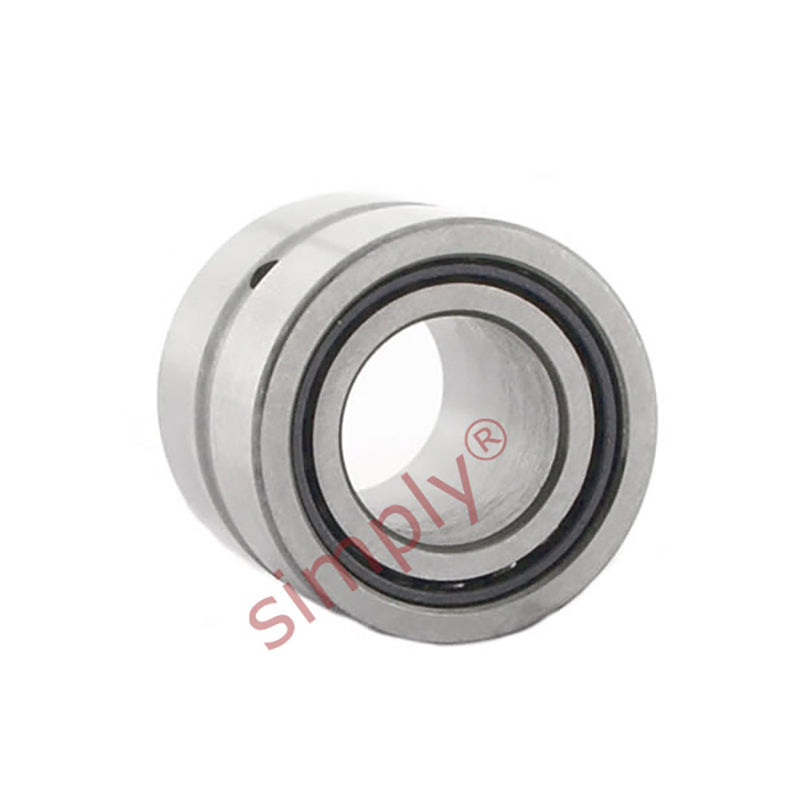

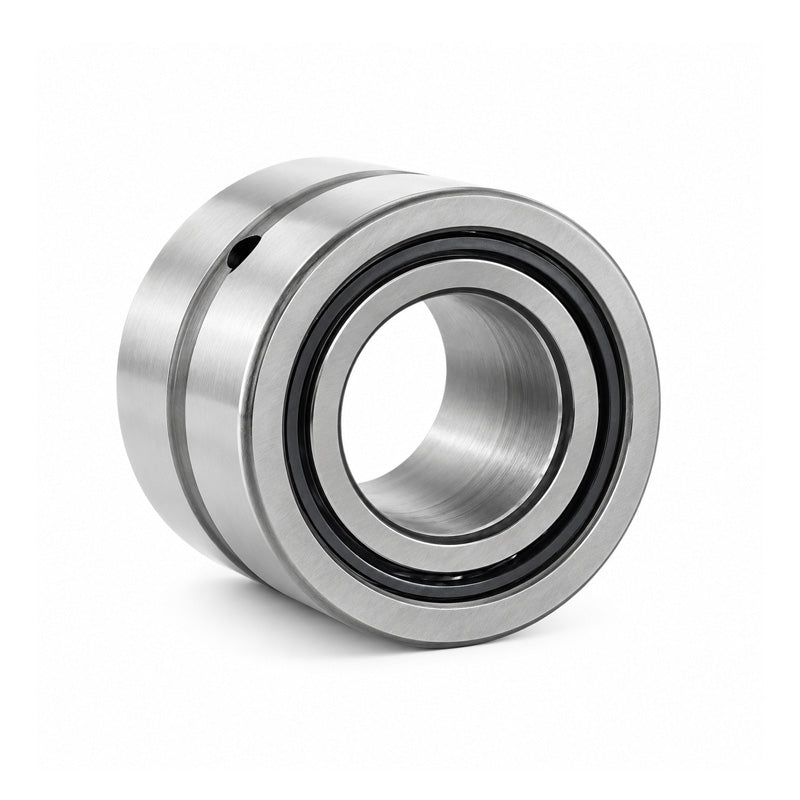

Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
Major Brand NKIS20 Needle Roller Bearing With Shaft Sleeve 20x42x20mm
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
In stock
Price Break
10+
CHF 22.14
19+
CHF 20.90
29+
CHF 20.65
39+
CHF 20.40
49+
CHF 20.15
74+
CHF 19.90
99+
CHF 18.66
199+
CHF 18.41
249+
CHF 18.16
499+
CHF 17.91
999+
CHF 17.42
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load | 28600 N |
| Static load | 39000 N |
| Fatigue load limit Pu | 5000 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| F | 28mm |
| r1r2 | 0.6mm |
| S (axial disp) | 0.5mm |
| da min | 24mm |
| Da max | 38mm |
| ra max | 0.6mm |
