SKU: NKIS25-EU

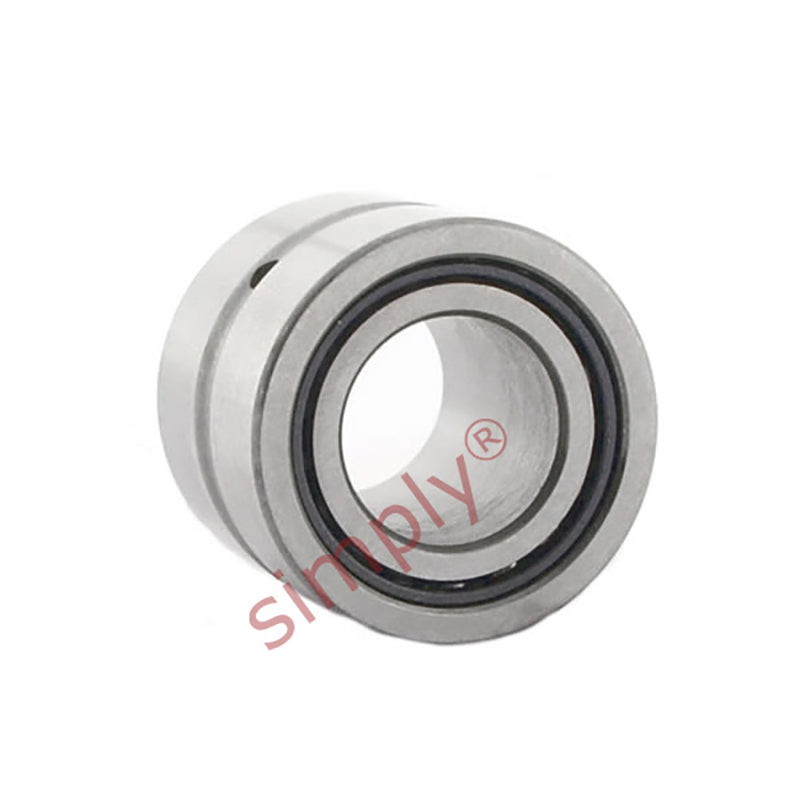

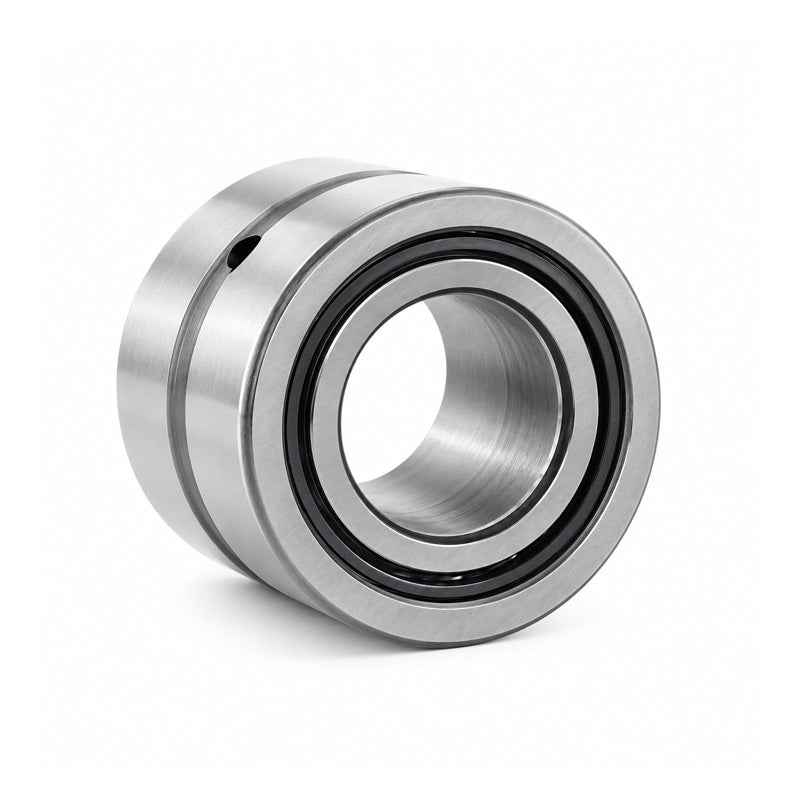

NKIS25 Budget Needle Roller Bearing / Shaft Sleeve 25x47x22mm
NKIS25 Budget Needle Roller Bearing / Shaft Sleeve 25x47x22mm
Regular price
CHF 18.00
ex VAT
Regular price
Sale price
CHF 18.00
ex VAT
In stock
Price Break
10+
CHF 13.83
19+
CHF 13.05
29+
CHF 12.90
39+
CHF 12.74
49+
CHF 12.59
74+
CHF 12.43
99+
CHF 11.66
199+
CHF 11.50
249+
CHF 11.34
499+
CHF 11.19
999+
CHF 10.88
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 47mm
- Width:
- 22mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 47mm |
| B | 22mm |
| Dynamic load C | 34100 N |
| Static load Co | 46500 N |
| Fatigue load limit Pu | 6000 N |
| Speed in grease | 8000 rpm |
| Speed in oil | 12000 rpm |
| F | 32mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 29mm |
| Da max | 43mm |
| ra max | 0.6mm |
