SKU: NKIS30-EU

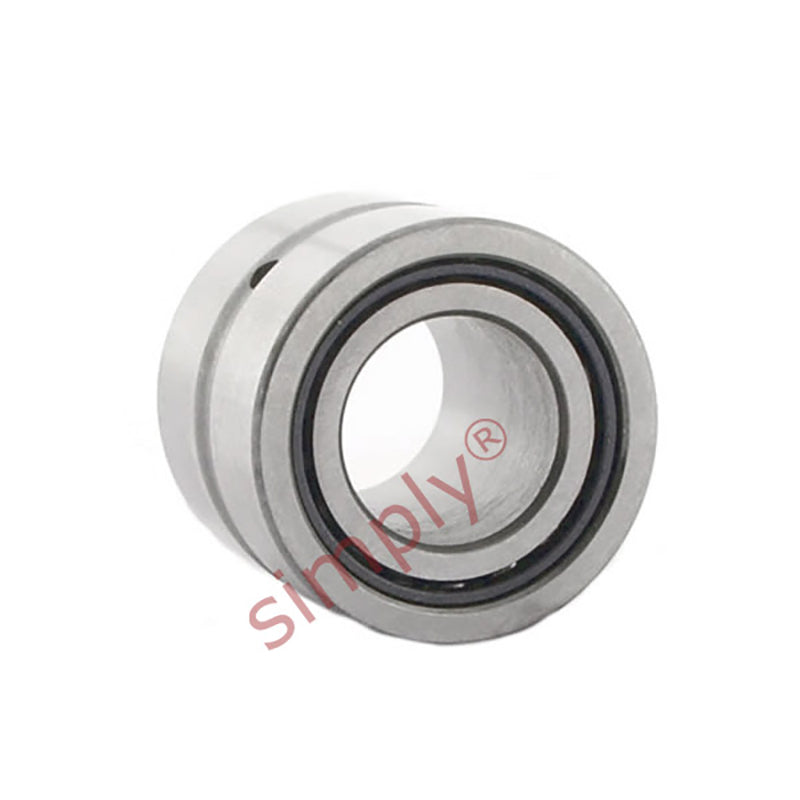

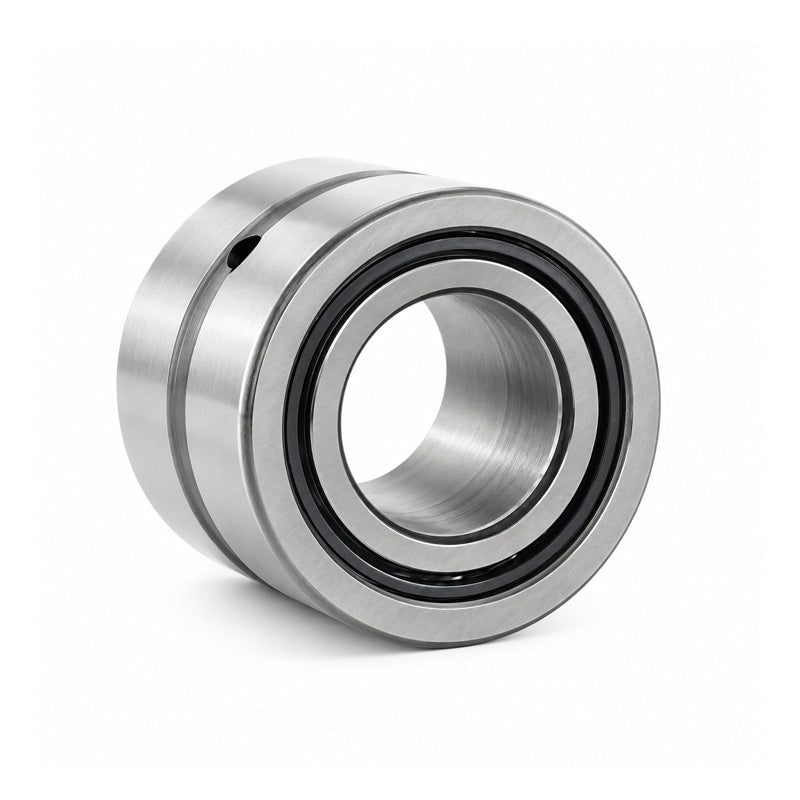

NKIS30 Budget Needle Roller Bearing / Shaft Sleeve 30x52x22mm
NKIS30 Budget Needle Roller Bearing / Shaft Sleeve 30x52x22mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
In stock
Price Break
10+
CHF 6.92
19+
CHF 6.53
29+
CHF 6.45
39+
CHF 6.37
49+
CHF 6.29
74+
CHF 6.22
99+
CHF 5.83
199+
CHF 5.75
249+
CHF 5.67
499+
CHF 5.59
999+
CHF 5.44
Description
Description
|
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 22mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 52mm |
| B | 22mm |
| Dynamic load C | 36000 N |
| Static load Co | 54000 N |
| Fatigue load limit Pu | 6950 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| F | 37mm |
| r1r2 | 0.6mm |
| S (axial disp) | 1mm |
| da min | 34mm |
| Da max | 48mm |
| ra max | 0.6mm |
