SKU: NKIS35-EU

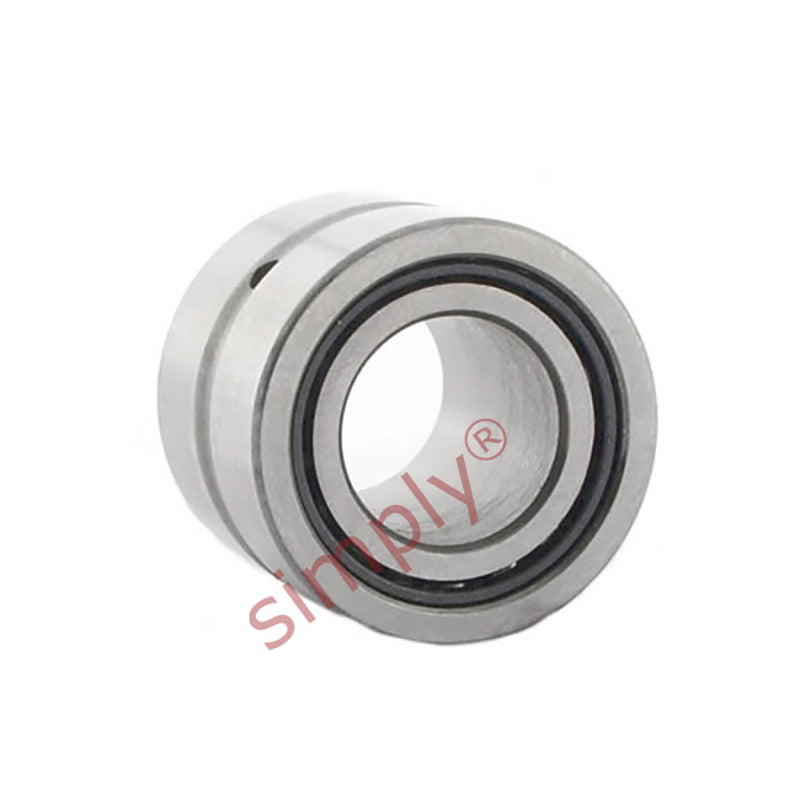

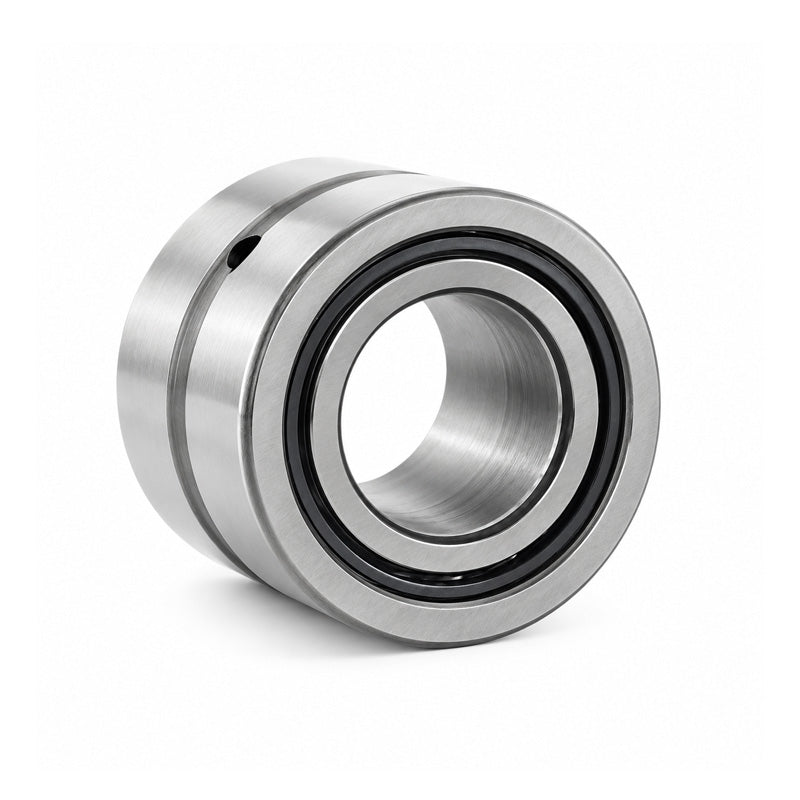

NKIS35 Budget Needle Roller Bearing / Shaft Sleeve 35x58x22mm

Name: NKIS35 Budget Needle Roller Bearing / Shaft Sleeve 35x58x22mm
Brand: Gen
SKU: NKIS35-EU
Price: 11.00 CHF
Availability: InStock

CHF 11.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 8.69

19+ CHF 8.20

29+ CHF 8.10

39+ CHF 8.00

49+ CHF 7.91

74+ CHF 7.81

99+ CHF 7.32

199+ CHF 7.22

249+ CHF 7.12

499+ CHF 7.03

999+ CHF 6.83

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 35mm
Outside Diameter:: 58mm
Width:: 22mm

Technical

d	35mm
D	58mm
B	22mm
Dynamic load C	39100 N
Static load Co	61000 N
Fatigue load limit Pu	7800 N
Speed in grease	6300 rpm
Speed in oil	9000 rpm
F	43mm
r1r2	0.6mm
S (axial disp)	0.5mm
da min	39mm
Da max	54mm
ra max	0.6mm
