SKU: NKIS45-MB

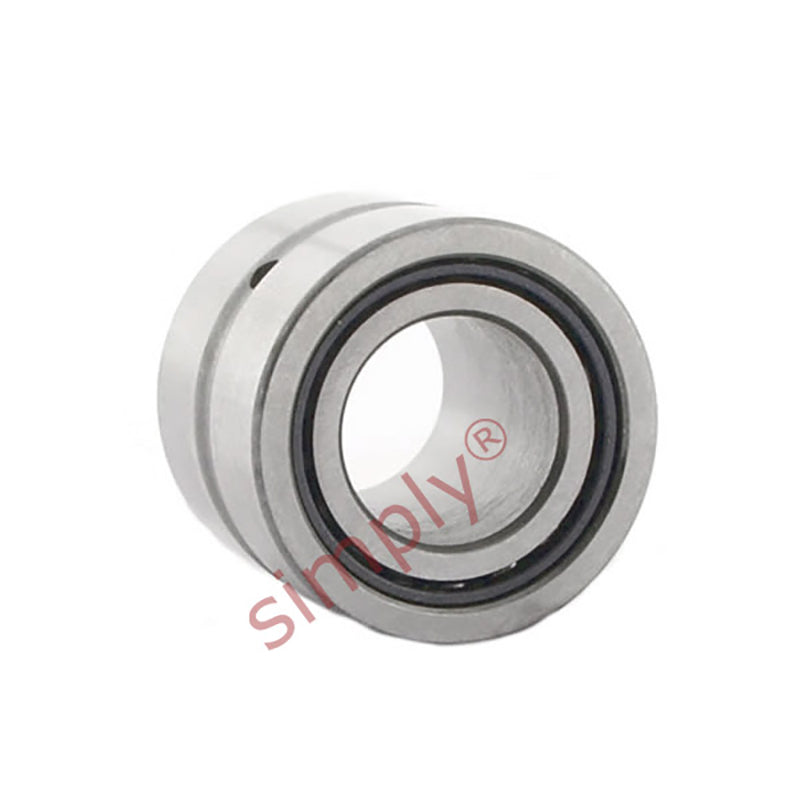

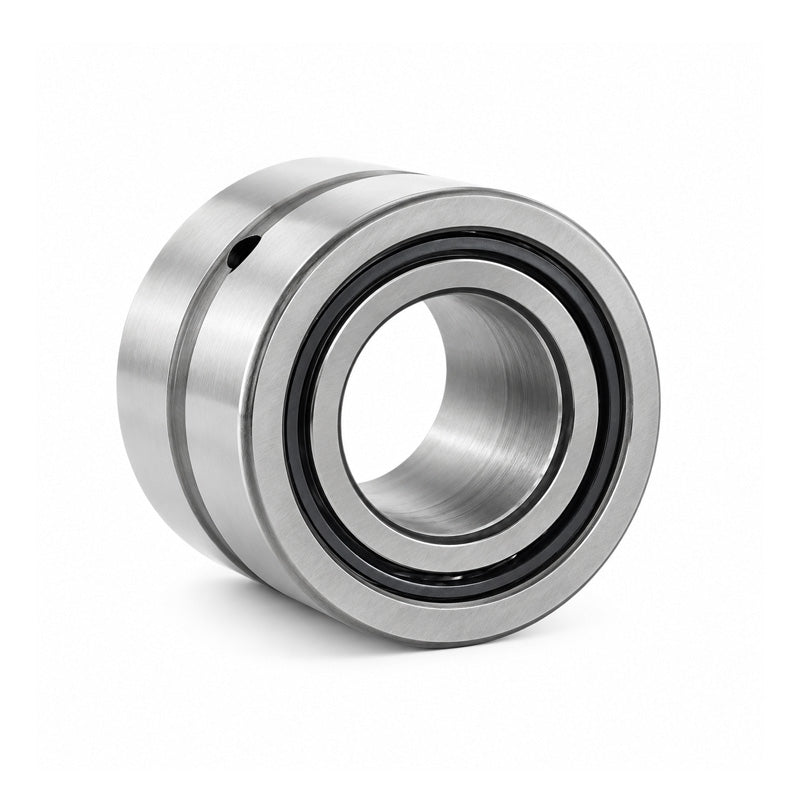

Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Major Brand NKIS45 Needle Roller Bearing With Shaft Sleeve 45x72x22mm
Regular price
CHF 66.00
ex VAT
Regular price
Sale price
CHF 66.00
ex VAT
In stock
Price Break
10+
CHF 52.50
19+
CHF 49.55
29+
CHF 48.96
39+
CHF 48.37
49+
CHF 47.78
74+
CHF 47.19
99+
CHF 44.24
199+
CHF 43.65
249+
CHF 43.06
499+
CHF 42.47
999+
CHF 41.29
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 72mm
- Width:
- 22mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 72mm |
| B | 22mm |
| Dynamic load | 44600 N |
| Static load | 78000 N |
| Fatigue load limit Pu | 10000 N |
| Speed in grease | 5000 rpm |
| Speed in oil | 7000 rpm |
| F | 55mm |
| r1r2 | 1mm |
| S (axial disp) | 0.5mm |
| da min | 50mm |
| Da max | 67mm |
| ra max | 1mm |
