SKU: NKIS50-MB

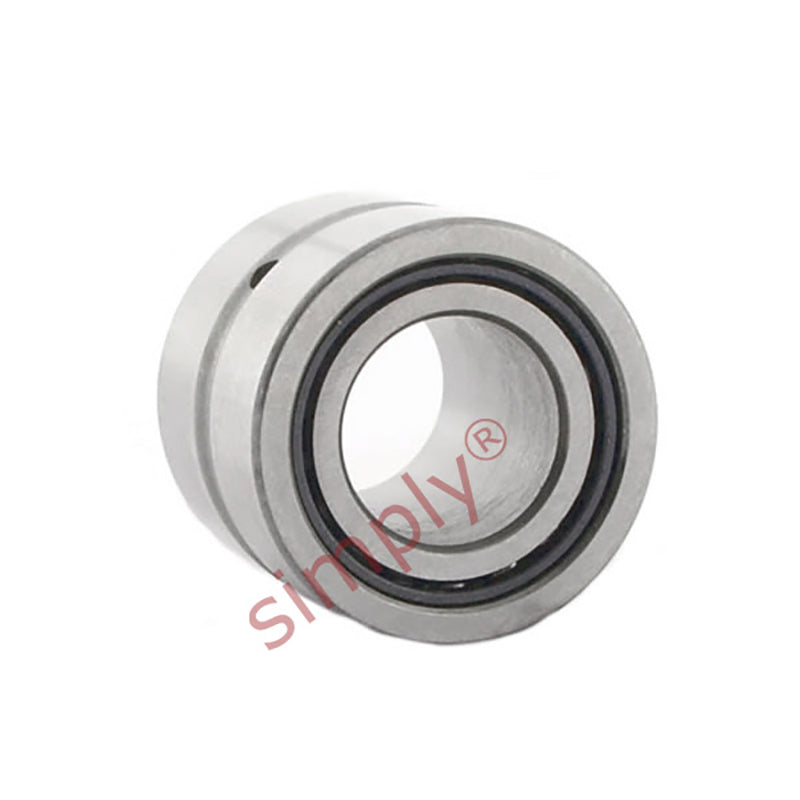

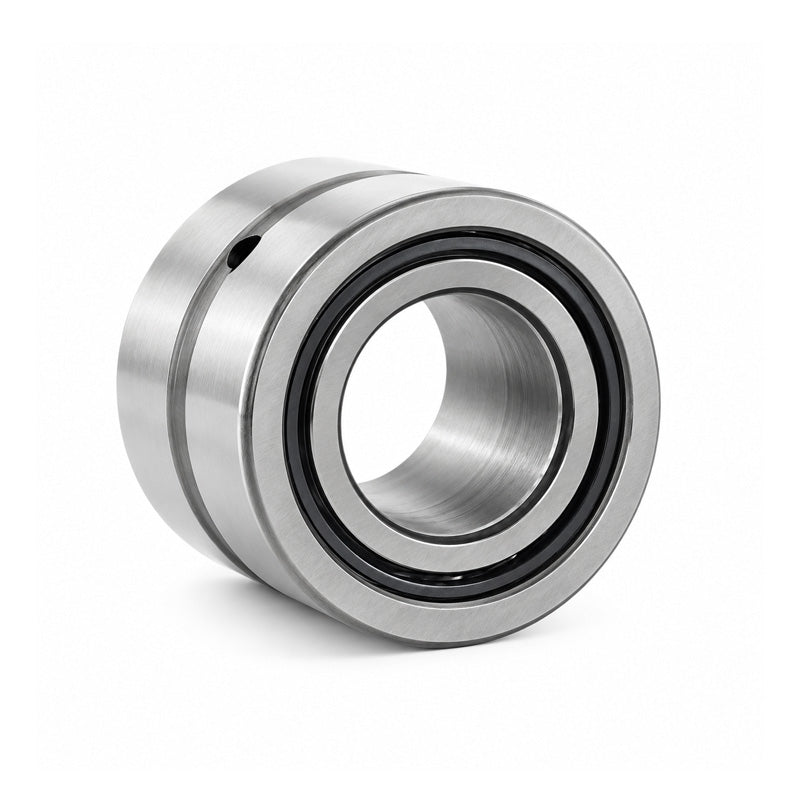

Major Brand NKIS50 Needle Roller Bearing With Shaft Sleeve 50x80x28mm
Major Brand NKIS50 Needle Roller Bearing With Shaft Sleeve 50x80x28mm
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
In stock
Price Break
10+
CHF 30.54
19+
CHF 28.83
29+
CHF 28.49
39+
CHF 28.14
49+
CHF 27.80
74+
CHF 27.46
99+
CHF 25.74
199+
CHF 25.40
249+
CHF 25.05
499+
CHF 24.71
999+
CHF 24.02
Description
Description
|
Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 28mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 28mm |
| Dynamic load | 62700 N |
| Static load | 104000 N |
| Fatigue load limit Pu | 13700 N |
| Speed in grease | 4500 rpm |
| Speed in oil | 6300 rpm |
| F | 60mm |
| r1r2 | 1.1mm |
| S (axial disp) | 2mm |
| da min | 56.5mm |
| Da max | 73.5mm |
| ra max | 1mm |
