SKU: NKS24-MB

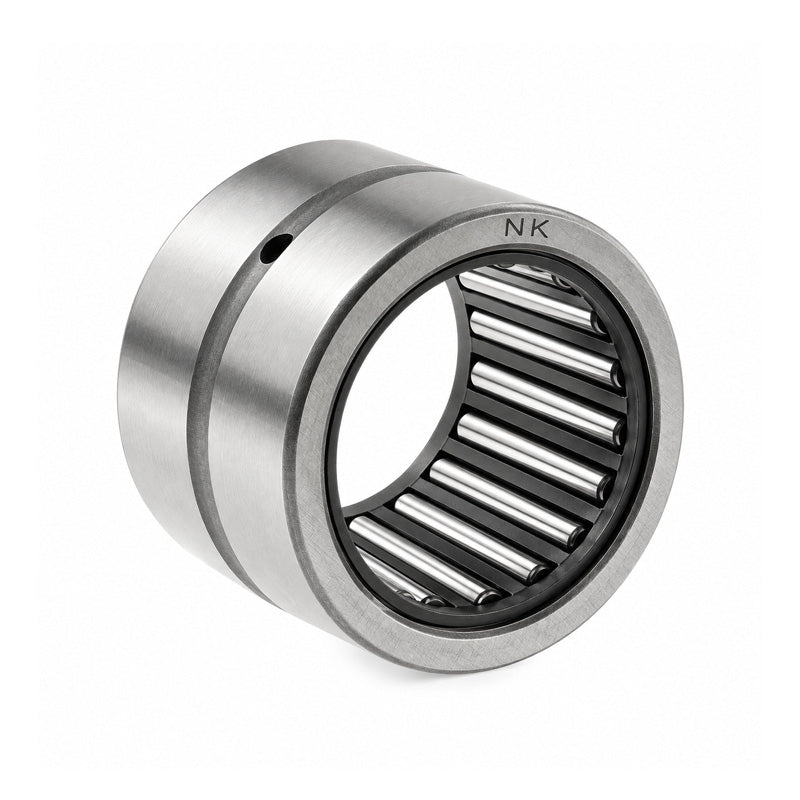

Major Brand NKS24 Needle Roller Bearing With Flanges without Shaft Sleeve 24x37x20mm
Major Brand NKS24 Needle Roller Bearing With Flanges without Shaft Sleeve 24x37x20mm
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
In stock
Price Break
10+
CHF 30.39
19+
CHF 28.68
29+
CHF 28.34
39+
CHF 28.00
49+
CHF 27.66
74+
CHF 27.32
99+
CHF 25.61
199+
CHF 25.27
249+
CHF 24.93
499+
CHF 24.58
999+
CHF 23.90
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, supplied without inner ring as they are commonly used on hardened shafts, has annular groove and oil hole for lubrication Benefits: Economical solution, supplied without inner ring, non separable, can be used with a wide range of inner rings |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 24mm
- Outside Diameter:
- 37mm
- Width:
- 20mm
Technical
Technical
| Fw | 24mm |
|---|---|
| D | 37mm |
| C | 20mm |
| Dynamic load | 26000 N |
| Static load | 33500 N |
| Fatigue load limit Pu | 4250 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| r1r2 | 0.3mm |
| Da max | 33mm |
| ra max | 0.6mm |
| Weight | 66 g |
