SKU: NKS35-MB

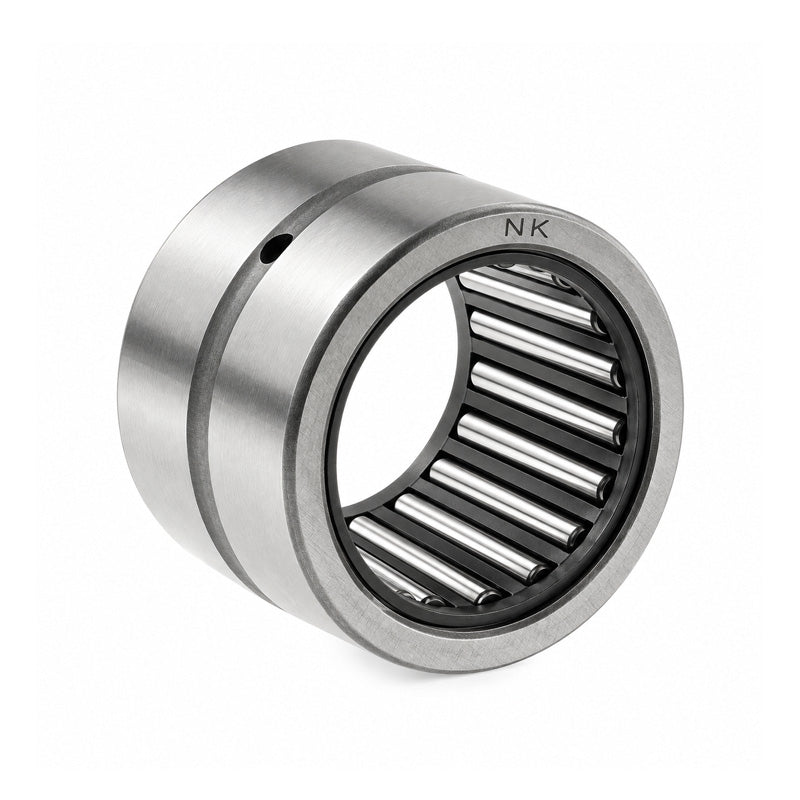

Major Brand NKS35 Needle Roller Bearing With Flanges without Shaft Sleeve 35x50x22mm
Major Brand NKS35 Needle Roller Bearing With Flanges without Shaft Sleeve 35x50x22mm
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
10+
CHF 26.74
19+
CHF 25.24
29+
CHF 24.94
39+
CHF 24.64
49+
CHF 24.34
74+
CHF 24.04
99+
CHF 22.53
199+
CHF 22.23
249+
CHF 21.93
499+
CHF 21.63
999+
CHF 21.03
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, supplied without inner ring as they are commonly used on hardened shafts, has annular groove and oil hole for lubrication Benefits: Economical solution, supplied without inner ring, non separable, can be used with a wide range of inner rings |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 50mm
- Width:
- 22mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 50mm |
| C | 22mm |
| Dynamic load | 35200 N |
| Static load | 50000 N |
| Fatigue load limit Pu | 6400 N |
| Speed in grease | 7500 rpm |
| Speed in oil | 11000 rpm |
| r1r2 | 0.6mm |
| Da max | 46mm |
| ra max | 0.6mm |
| Seal | CR35x50x8CRW1R |
| Weight | 120 g |
