SKU: NKX30-EU

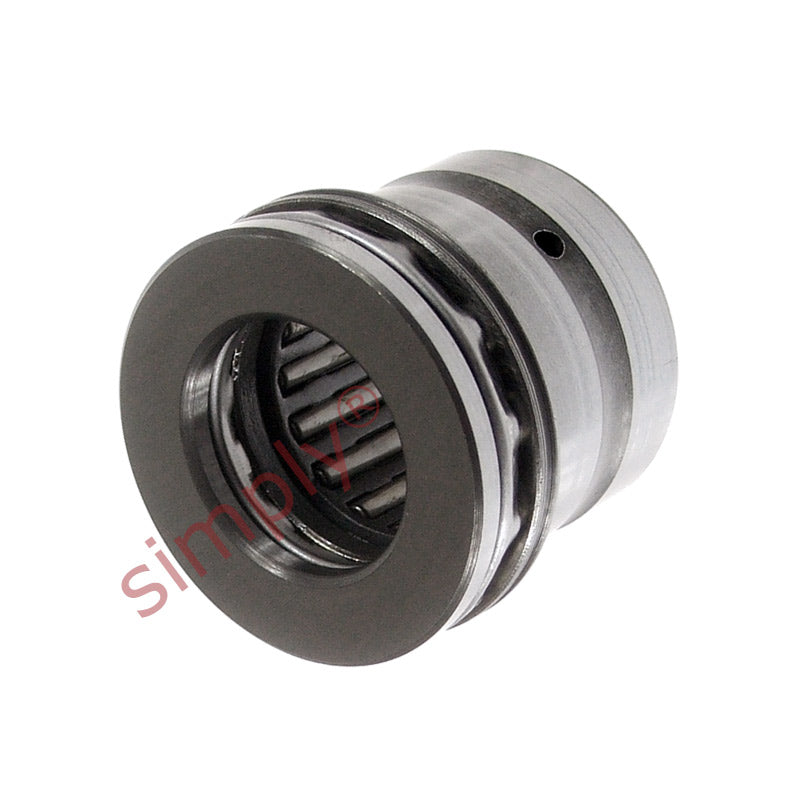

NKX30 Budget Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm
NKX30 Budget Needle Roller Thrust Ball Bearing Without Cover 30x42x30mm
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
10+
CHF 33.59
19+
CHF 31.70
29+
CHF 31.32
39+
CHF 30.94
49+
CHF 30.57
74+
CHF 30.19
99+
CHF 28.30
199+
CHF 27.93
249+
CHF 27.55
499+
CHF 27.17
999+
CHF 26.42
Share this product
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 30mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 42mm |
| C | 30mm |
| Radial dynamic load | 22900 N |
| Radial static load | 39000 N |
| Axial dynamic load | 20300 N |
| Axial static load | 45500 N |
| Fatigue load limit radial Pu | 4800 N |
| Fatigue load limit axial Pu | 1700 N |
| Min load factor | 10 |
| Speed in grease | 4500 rpm |
| Speed in oil | 6000 rpm |
| C1 | 11mm |
| C2 | 9.5mm |
| d | 30mm |
| d1 | 47mm |
| D1 | 47mm |
| r1r2 min | 0.6mm |
| da min | 40mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 25mm |
| F | 30mm |
| Bi | 20mm |
| Inner ring | IR25x30x20 |
| Weight | 140 g |
