SKU: NKX35Z-MB

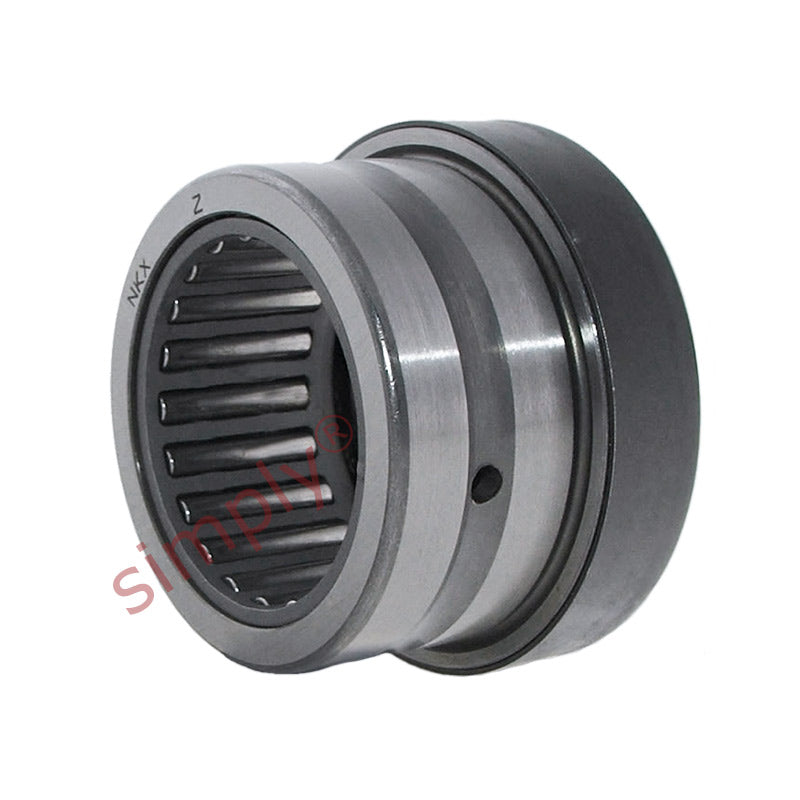

Major Brand NKX35Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 35x47x30mm
Major Brand NKX35Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 35x47x30mm
Regular price
CHF 55.66
ex VAT
Regular price
Sale price
CHF 55.66
ex VAT
In stock
Price Break
10+
CHF 49.54
19+
CHF 46.75
29+
CHF 46.20
39+
CHF 45.64
49+
CHF 45.08
74+
CHF 44.53
99+
CHF 41.75
199+
CHF 41.19
249+
CHF 40.63
499+
CHF 40.08
999+
CHF 38.96
Couldn't load pickup availability
Description
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Radial dynamic load | 24600 N |
| Radial static load | 45000 N |
| Axial dynamic load | 21200 N |
| Axial static load | 51000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 1900 N |
| Min load factor | 13 |
| Speed in grease | 4300 rpm |
| Speed in oil | 5600 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35 |
