SKU: NKX40Z-MB

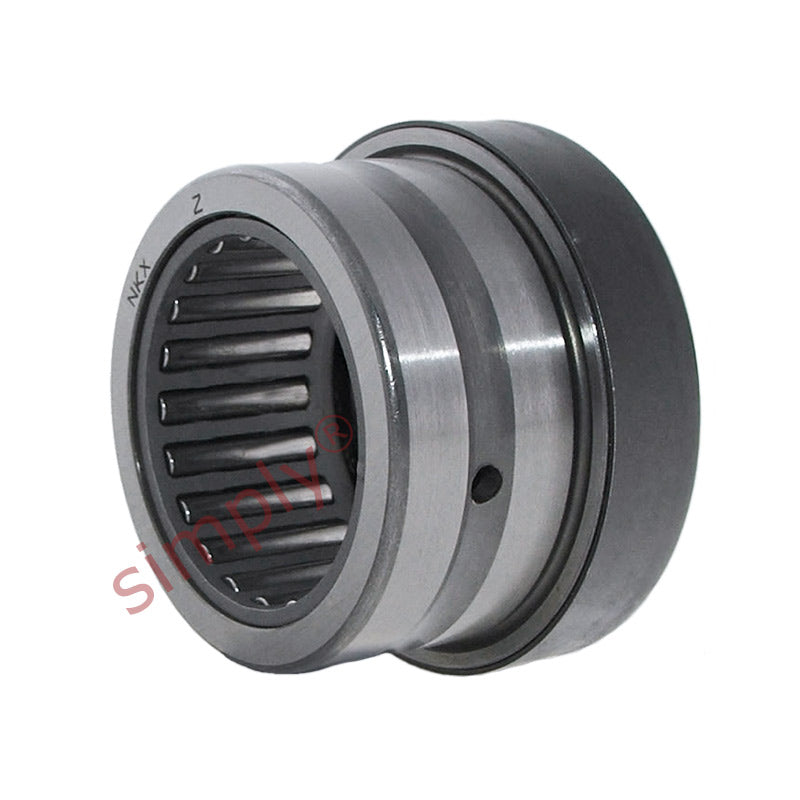

Major Brand NKX40Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 40x52x32mm
Major Brand NKX40Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 40x52x32mm
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
10+
CHF 76.78
19+
CHF 72.47
29+
CHF 71.61
39+
CHF 70.74
49+
CHF 69.88
74+
CHF 69.02
99+
CHF 64.70
199+
CHF 63.84
249+
CHF 62.98
499+
CHF 62.12
999+
CHF 60.39
Share this product
Description
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 32mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 32mm |
| Radial dynamic load | 26400 N |
| Radial static load | 51000 N |
| Axial dynamic load | 27000 N |
| Axial static load | 68000 N |
| Fatigue load limit radial Pu | 6300 N |
| Fatigue load limit axial Pu | 2550 N |
| Min load factor | 24 |
| Speed in grease | 3800 rpm |
| Speed in oil | 5000 rpm |
| C1 | 13mm |
| C2 | 10mm |
| d | 40 |
