SKU: NKX40Z-NTN

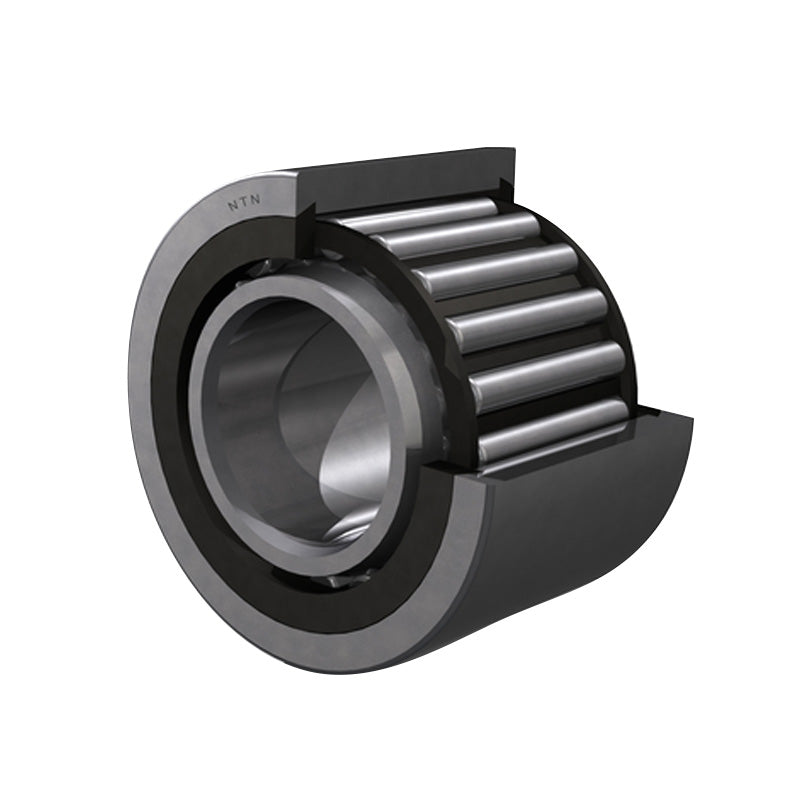

NTN NKX40Z Combination Needle Roller Thrust Bearing 40x52x32mm - Allow 2-3 Days
NTN NKX40Z Combination Needle Roller Thrust Bearing 40x52x32mm - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.79
4+
CHF 63.13
9+
CHF 61.80
19+
CHF 59.81
49+
CHF 58.48
99+
CHF 55.15
499+
CHF 46.52
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
NTN Combination Bearings: These bearings deliver exceptional performance, durability, and precision for demanding industrial applications. Designed to handle both radial and axial loads simultaneously, these high-quality bearings combine advanced engineering with NTN’s proven reliability. Their robust construction ensures smooth operation, reduced friction, and long service life even under heavy-duty conditions. Ideal for use in machinery, automotive systems, and various equipment requiring accurate alignment and load distribution, NTN Combination Bearings offer superior efficiency and consistent performance you can trust. Perfect for customers seeking dependable, high-performance bearing solutions. Benefits: Efficiently supports both radial and axial loads, high durability, low friction operation |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 32mm
Technical
Technical
| Fw - Inside diameter | 40mm |
|---|---|
| dw - Shaft washer bore diameter | 40mm |
| D - Outside diameter | 52mm |
| D2 - Outer diameter of thrust bearing | 61mm |
| C - Width | 32mm |
| C1 - Thrust bearing height | 13mm |
| C2 - Hole location | 10mm |
| a - Thrust bearing support diameter | 55.7mm |
| rs - Minimum fillet radius | 0.6mm |
| Lubrication hole on outer ring? | Yes |
| Precision class | P0 |
| Cr - Dynamic load rating | 25.9 kN |
| Ca - Dynamic axial load rating | 26.9 kN |
| C0r - Static load rating | 52.5 kN |
| C0a - Static axial load rating | 63 kN |
| N - Grease lubrication limit speed | 3500 tr/min |
| N - Oil lubrication limit speed | 5000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
| da min - Inner ring minimum shoulder diameter | 52mm |
| ras max - Maximum shaft & housing fillet radius | 0.6mm |
