SKU: NKX45-EU

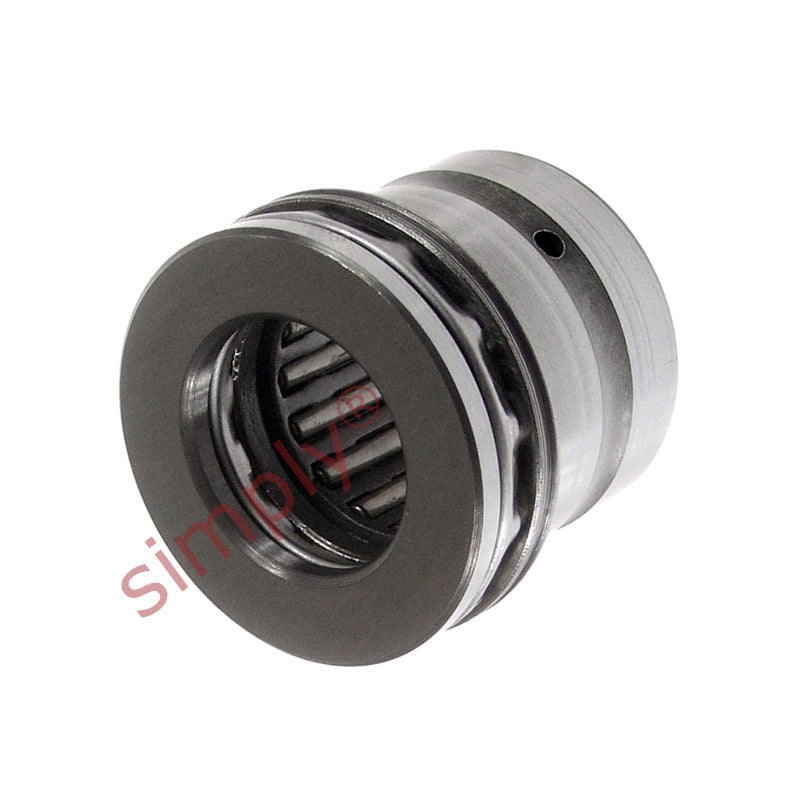

NKX45 Budget Needle Roller Thrust Ball Bearing Without Cover 45x58x32mm
NKX45 Budget Needle Roller Thrust Ball Bearing Without Cover 45x58x32mm
Regular price
CHF 65.00
ex VAT
Regular price
Sale price
CHF 65.00
ex VAT
In stock
Price Break
10+
CHF 51.29
19+
CHF 48.40
29+
CHF 47.83
39+
CHF 47.25
49+
CHF 46.68
74+
CHF 46.10
99+
CHF 43.22
199+
CHF 42.64
249+
CHF 42.07
499+
CHF 41.49
999+
CHF 40.34
Share this product
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a separable design the needle roller and cage assembly with the outer ring and housing washer, the ball and cage thrust assembly can all be mounted separately. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Radial dynamic load | 28100 N |
| Radial static load | 57000 N |
| Axial dynamic load | 28100 N |
| Axial static load | 75000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 2800 N |
| Min load factor | 29 |
| Speed in grease | 3400 rpm |
| Speed in oil | 4500 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| d1 | 65mm |
| D1 | 65mm |
| r1r2 min | 0.6mm |
| da min | 57mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| Bi | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 250 g |
