SKU: NKX50Z-MB

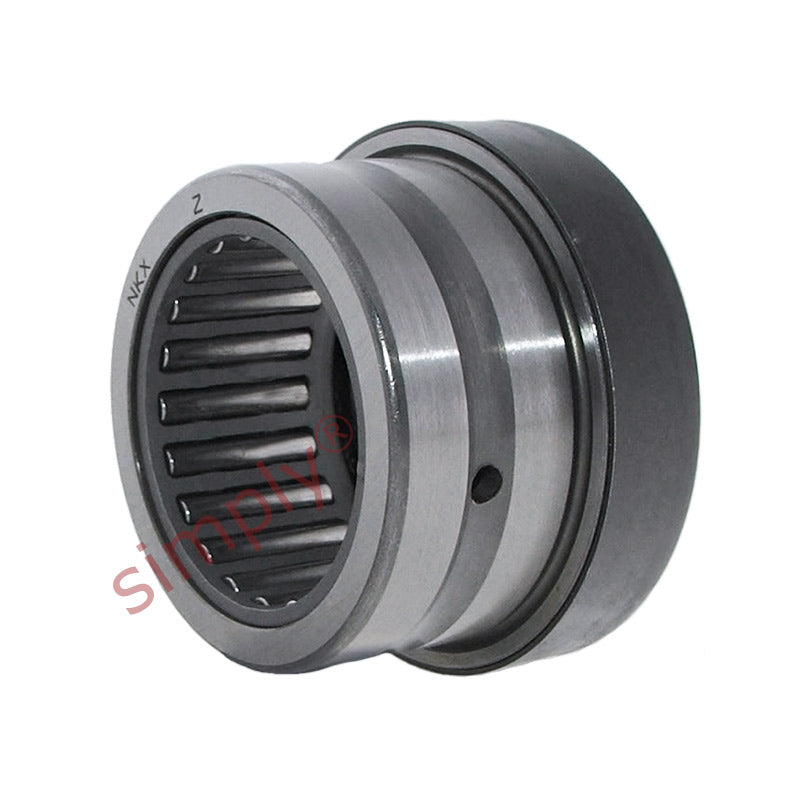

Major Brand NKX50Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 50x62x35mm
Major Brand NKX50Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 50x62x35mm
Regular price
CHF 80.00
ex VAT
Regular price
Sale price
CHF 80.00
ex VAT
In stock
Price Break
10+
CHF 63.35
19+
CHF 59.79
29+
CHF 59.08
39+
CHF 58.37
49+
CHF 57.66
74+
CHF 56.94
99+
CHF 53.39
199+
CHF 52.67
249+
CHF 51.96
499+
CHF 51.25
999+
CHF 49.83
Share this product
Description
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Radial dynamic load | 38000 N |
| Radial static load | 80000 N |
| Axial dynamic load | 28600 N |
| Axial static load | 81500 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 3050 N |
| Min load factor | 34 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50 |
