SKU: NKX60Z-EU

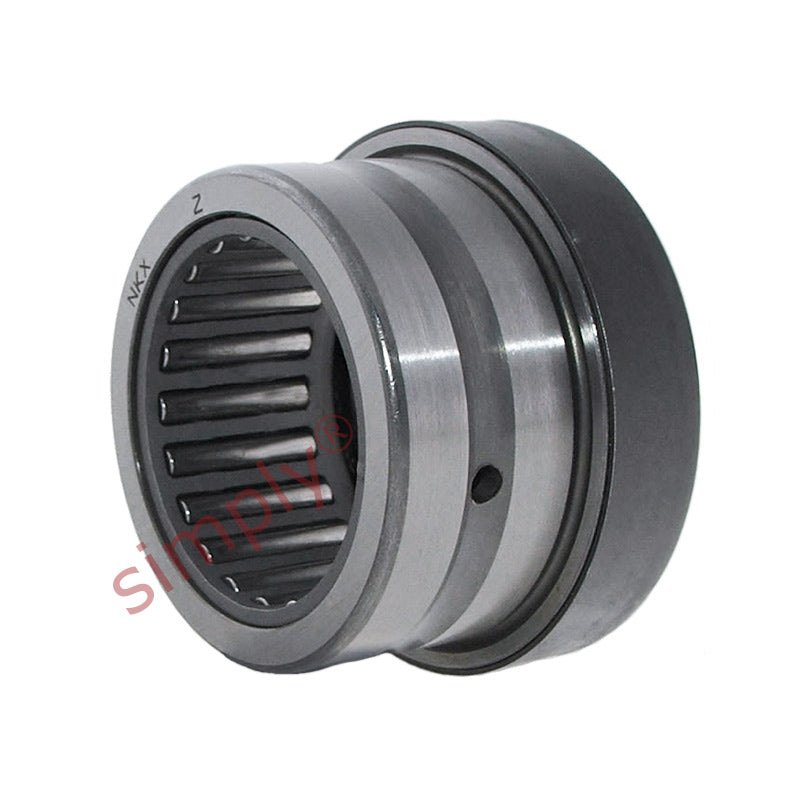

NKX60Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 60x72x40mm
NKX60Z Budget Needle / Ball Thrust Bearing with Closure Ring/Cover 60x72x40mm
Regular price
CHF 45.00
ex VAT
Regular price
Sale price
CHF 45.00
ex VAT
In stock
Price Break
10+
CHF 35.36
19+
CHF 33.37
29+
CHF 32.98
39+
CHF 32.58
49+
CHF 32.18
74+
CHF 31.78
99+
CHF 29.80
199+
CHF 29.40
249+
CHF 29.00
499+
CHF 28.61
999+
CHF 27.81
Share this product
Description
Description
Budget Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 40mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 40mm |
| Radial dynamic load | 41800 N |
| Radial static load | 96500 N |
| Axial dynamic load | 41600 N |
| Axial static load | 122000 N |
| Fatigue load limit radial Pu | 11800 N |
| Fatigue load limit axial Pu | 4550 N |
| Min load factor | 77 |
| Speed in grease | 2600 rpm |
| Speed in oil | 3600 rpm |
| C1 | 17mm |
| C2 | 12mm |
| d | 60mm |
| d1 | 80.5mm |
| D2 | 86.5mm |
| r1r2 min | 1mm |
| da min | 75mm |
| db max | 80.5mm |
| ra max | 1mm |
| rb max | 1mm |
| di | 50mm |
| F | 60mm |
| Bi | 25mm |
| Inner ring | IR50x60x25 |
| Weight | 380 g |
