SKU: NKX60Z-MB

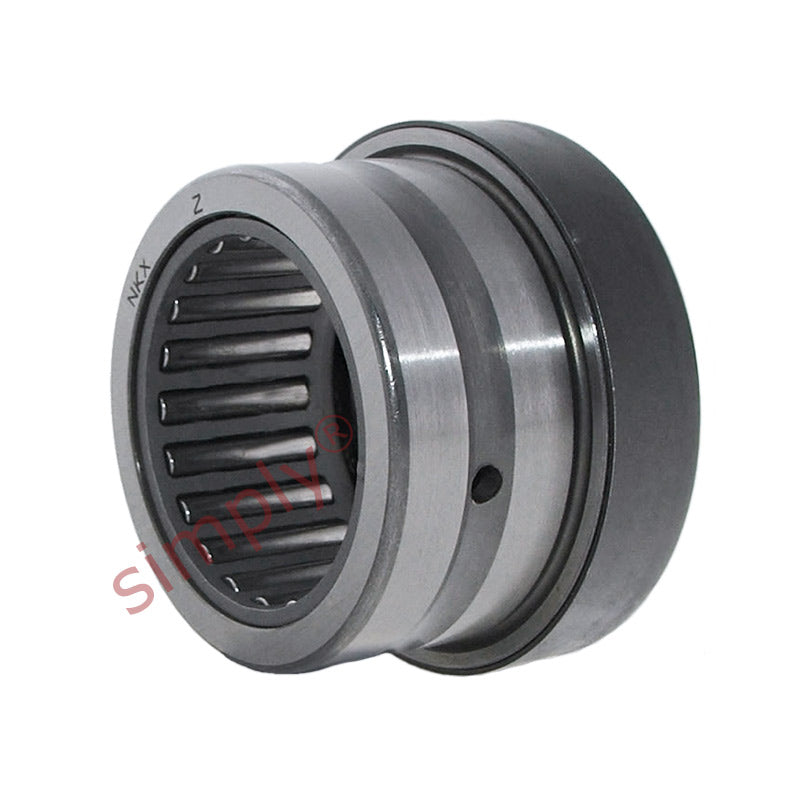

Major Brand NKX60Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 60x72x40mm
Major Brand NKX60Z Needle Roller Thrust Ball Bearing with Closure Ring and Cover 60x72x40mm
Regular price
CHF 172.00
ex VAT
Regular price
Sale price
CHF 172.00
ex VAT
In stock
Price Break
10+
CHF 136.50
19+
CHF 128.83
29+
CHF 127.29
39+
CHF 125.76
49+
CHF 124.23
74+
CHF 122.69
99+
CHF 115.03
199+
CHF 113.49
249+
CHF 111.96
499+
CHF 110.42
999+
CHF 107.36
Share this product
Description
Description
Needle Roller / Ball Thrust Combination: Of a non separable design has a cover attached to the housing washer which extends over the needle roller bearing outer ring, these are particularly suited to grease lubrication as the cover acts to retain the lubricant. They are able to support heavy single direction thrust loads in addition to radial loads, they also permit relatively high speed operation. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 72mm
- Width:
- 40mm
Technical
Technical
| Fw | 60mm |
|---|---|
| D | 72mm |
| C | 40mm |
| Radial dynamic load | 41800 N |
| Radial static load | 96500 N |
| Axial dynamic load | 41600 N |
| Axial static load | 122000 N |
| Fatigue load limit radial Pu | 11800 N |
| Fatigue load limit axial Pu | 4550 N |
| Min load factor | 77 |
| Speed in grease | 2600 rpm |
| Speed in oil | 3600 rpm |
| C1 | 17mm |
| C2 | 12mm |
| d | 60 |
